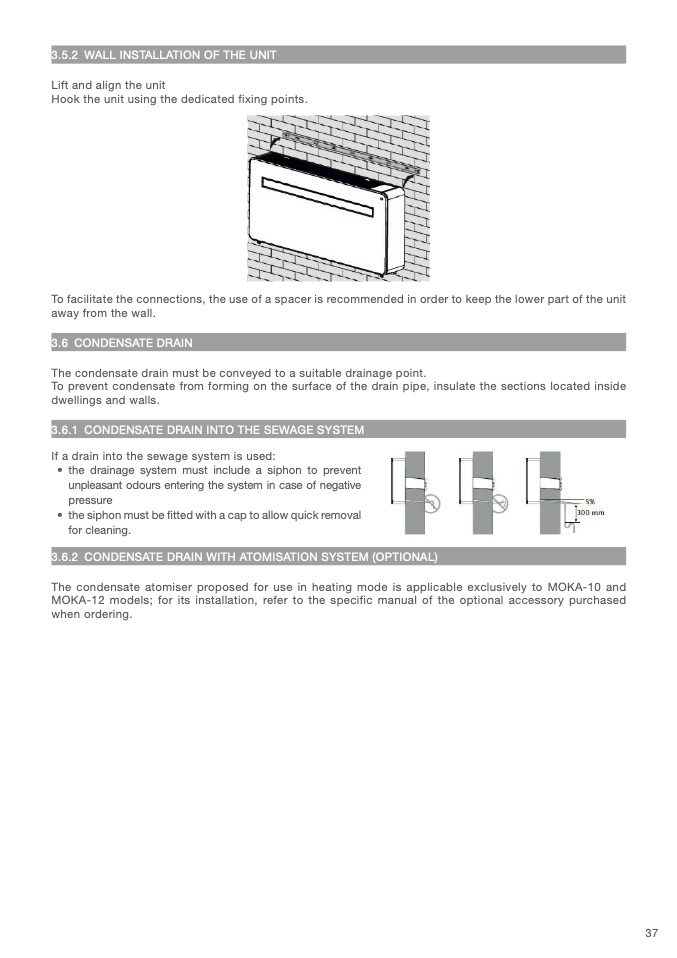

3.5.2 WALL INSTALLATION OF THE UNI

T

Lift and align the unit

Hook the unit using the dedicated fixing points

.

To facilitate the connections, the use of a spacer is recommended in order to keep the lower part of the unit

away from the wall

.

3.6 CONDENSATE DRAIN

The condensate drain must be conveyed to a suitable drainage point

.

To prevent condensate from forming on the surface of the drain pipe, insulate the sections located insid

e

dwellings and walls

.

3.6.1 CONDENSATE DRAIN INTO THE SEWAGE SYSTEM

If a drain into the sewage system is used

:

• the drainage system must include a siphon to preven

t

unpleasant odours entering the system in case of negativ

e

pressure

• the siphon must be

fi tted with a cap to allow quick removal

for cleaning.

3.6.2 CONDENSATE DRAIN WITH ATOMISATION SYSTEM (OPTIONAL

)

The condensate atomiser proposed for use in heating mode is applicable exclusively to MOKA-10 and

MOKA-12 models; for its installation, refer to the specific manual of the optional accessory purchased

when ordering

.
