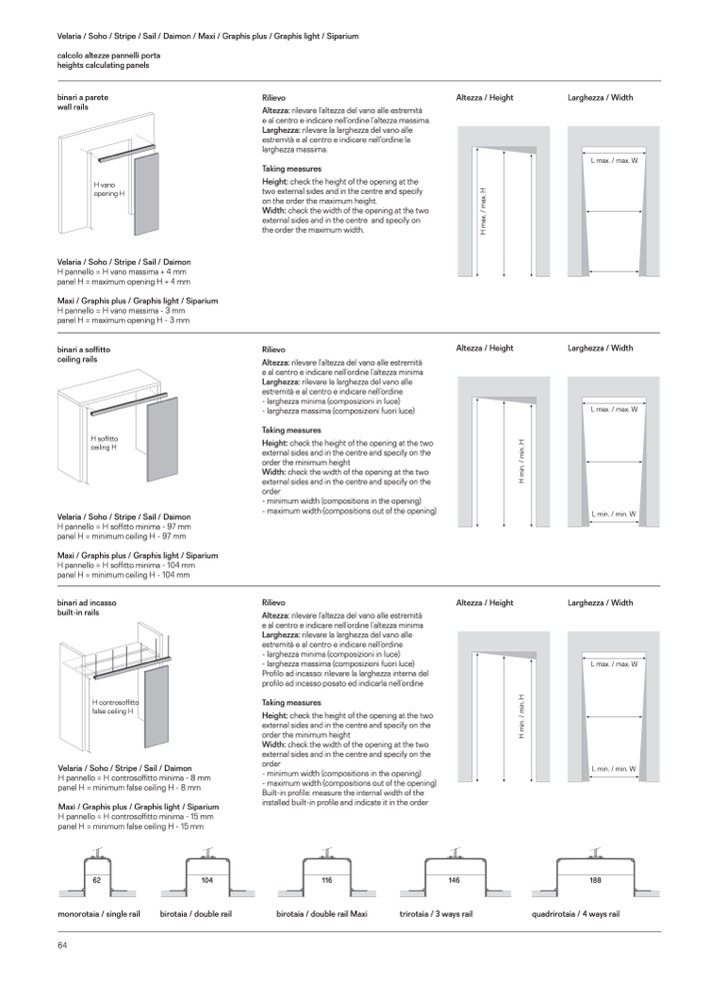

Velaria / Soho / Stripe / Sail / Daimon / Maxi / Graphis plus / Graphis light / Siparium

calcolo altezze pannelli porta

heights calculating panels

binari a parete

Rilievo

Altezza / Height

Larghezza / Width

wall rails

Altezza: rilevare l’altezza del vano alle estremità

e al centro e indicare nell’ordine l’altezza massima.

Larghezza: rilevare la larghezza del vano alle

estremità e al centro e indicare nell’ordine la

larghezza massima.

Taking measures

Height: check the height of the opening at the

two external sides and in the centre and specify

on the order the maximum height.

Width: check the width of the opening at the two

external sides and in the centre and specify on

the order the maximum width.

L max. / max. W

H vano

opening H

Velaria / Soho / Stripe / Sail / Daimon

H pannello = H vano massima + 4 mm

panel H = maximum opening H + 4 mm

Maxi / Graphis plus / Graphis light / Siparium

H pannello = H vano massima - 3 mm

panel H = maximum opening H - 3 mm

binari a soffitto

Rilievo

Altezza / Height

Larghezza / Width

ceiling rails

Altezza: rilevare l’altezza del vano alle estremità

e al centro e indicare nell’ordine l’altezza minima

Larghezza: rilevare la larghezza del vano alle

estremità e al centro e indicare nell’ordine

- larghezza minima (composizioni in luce)

- larghezza massima (composizioni fuori luce)

Taking measures

Height: check the height of the opening at the two

external sides and in the centre and specify on the

order the minimum height

Width: check the width of the opening at the two

external sides and in the centre and specify on the

order

- minimum width (compositions in the opening)

- maximum width (compositions out of the opening)

L max. / max. W

Velaria / Soho / Stripe / Sail / Daimon

H pannello = H soffitto minima - 97 mm

panel H = minimum ceiling H - 97 mm

Maxi / Graphis plus / Graphis light / Siparium

H pannello = H soffitto minima - 104 mm

panel H = minimum ceiling H - 104 mm

L min. / min. W

Larghezza / Width

binari ad incasso

Rilievo

Altezza / Height

built-in rails

Altezza: rilevare l’altezza del vano alle estremità

e al centro e indicare nell’ordine l’altezza minima

Larghezza: rilevare la larghezza del vano alle

estremità e al centro e indicare nell’ordine

- larghezza minima (composizioni in luce)

- larghezza massima (composizioni fuori luce)

Profilo ad incasso: rilevare la larghezza interna del

profilo ad incasso posato ed indicarla nell’ordine

Taking measures

Height: check the height of the opening at the two

external sides and in the centre and specify on the

order the minimum height

Width: check the width of the opening at the two

external sides and in the centre and specify on the

L max. / max. W

Velaria / Soho / Stripe / Sail / Daimon

order

H pannello = H controsoffitto minima - 8 mm

- minimum width (compositions in the opening)

panel H = minimum false ceiling H - 8 mm

- maximum width (compositions out of the opening)

Built-in profile: measure the internal width of the

L min. / min. W

188

Maxi / Graphis plus / Graphis light / Siparium

H pannello = H controsoffitto minima - 15 mm

panel H = minimum false ceiling H - 15 mm

62

104

116

monorotaia / single rail

birotaia / double rail

146

installed built-in profile and indicate it in the order

64

H soffitto

ceiling H

H controsoffitto

false ceiling H

birotaia / double rail Maxi

trirotaia / 3 ways rail

quadrirotaia / 4 ways rail

H

m

i

n

.

/

m

i

n

.

H

H

m

i

n

.

/

m

i

n

.

H

H

m

a

x

.

/

m

a

x

.

H
