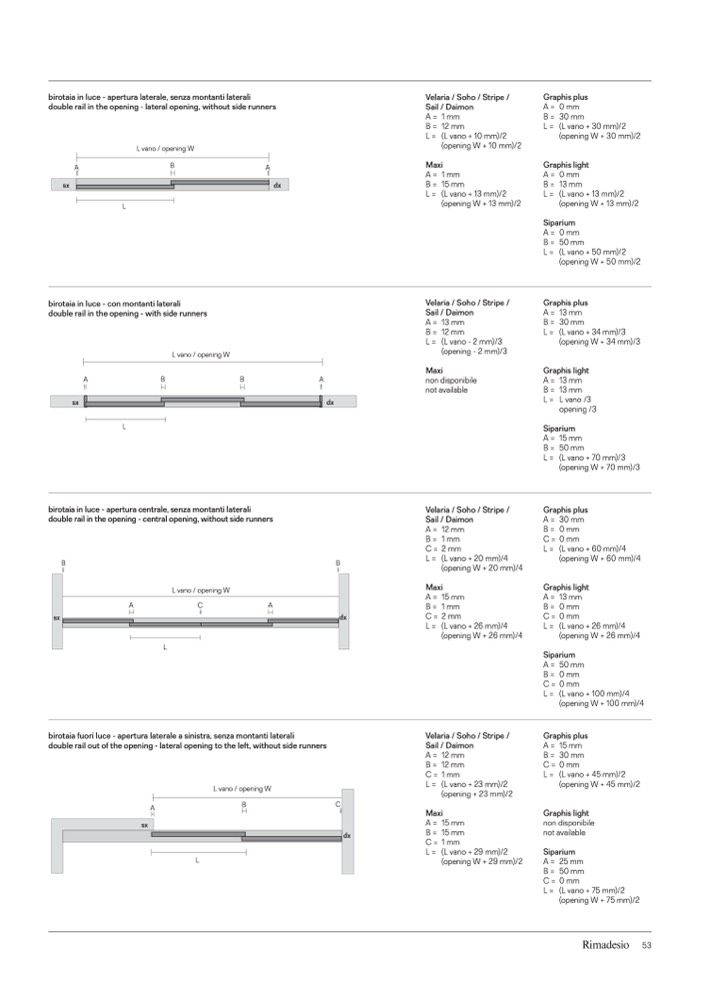

birotaia in luce - apertura laterale, senza montanti laterali
double rail in the opening - lateral opening, without side runners
Velaria / Soho / Stripe /
Sail / Daimon
A= 1mm
B= 12 mm
L= (L vano + 10 mm)/2
(opening W + 10 mm)/2
Maxi
A= 1mm
B= 15 mm
L= (L vano + 13 mm)/2
(opening W + 13 mm)/2
Velaria / Soho / Stripe /
Sail / Daimon
A= 13 mm
B= 12 mm
L= (L vano - 2 mm)/3
(opening - 2 mm)/3
Maxi
non disponibile
not available
Velaria / Soho / Stripe /
Sail / Daimon
A= 12 mm
B= 1mm
C= 2mm
L= (L vano + 20 mm)/4
(opening W + 20 mm)/4
Maxi
A= 15 mm
B= 1mm
C= 2mm
L= (L vano + 26 mm)/4
(opening W + 26 mm)/4
Velaria / Soho / Stripe /
Sail / Daimon
A= 12 mm
B= 12 mm
C= 1mm
L= (L vano + 23 mm)/2
(opening + 23 mm)/2
Maxi
Graphis plus
A= 0mm
B= 30 mm
L= (L vano + 30 mm)/2
(opening W + 30 mm)/2
Graphis light
A= 0mm
B= 13 mm
L= (L vano + 13 mm)/2
(opening W + 13 mm)/2
Siparium
A= 0mm
B= 50mm
L= (Lvano+50mm)/2
(opening W + 50 mm)/2
Graphis plus
A= 13 mm
B= 30 mm
L= (L vano + 34 mm)/3
(opening W + 34 mm)/3
Graphis light
A= 13 mm
B= 13 mm
L= Lvano/3
opening /3
Siparium
A= 15mm
B= 50mm
L= (Lvano+70mm)/3
(opening W + 70 mm)/3
Graphis plus
A= 30 mm
B= 0mm
C= 0mm
L= (L vano + 60 mm)/4
(opening W + 60 mm)/4
Graphis light
A= 13 mm
B= 0mm
C= 0mm
L= (L vano + 26 mm)/4
(opening W + 26 mm)/4
Siparium
L vano / opening W
L
A
B
A
sx
dx
birotaia in luce - con montanti laterali
double rail in the opening - with side runners
L vano / opening W
L
birotaia in luce - apertura centrale, senza montanti laterali
double rail in the opening - central opening, without side runners
A
B
B
A
sx
dx
B
B
L vano / opening W
sx
A
C
A
dx
L
birotaia fuori luce - apertura laterale a sinistra, senza montanti laterali
double rail out of the opening - lateral opening to the left, without side runners
Graphis plus
A= 15 mm
B= 30 mm
C= 0mm
L= (L vano + 45 mm)/2
(opening W + 45 mm)/2
Graphis light
non disponibile
not available
Siparium
L vano / opening W
A=
B=
C =
L=
50mm
0mm
0 mm
(Lvano+100mm)/4
(opening W + 100 mm)/4
A
B
C
sx
A=
B=
C =
L=
15 mm
15 mm
1 mm
(L vano + 29 mm)/2
(opening W + 29 mm)/2
dx
L
A=
B=
C =
L=
25 mm
50mm
0 mm
(Lvano+75mm)/2
(opening W + 75 mm)/2
