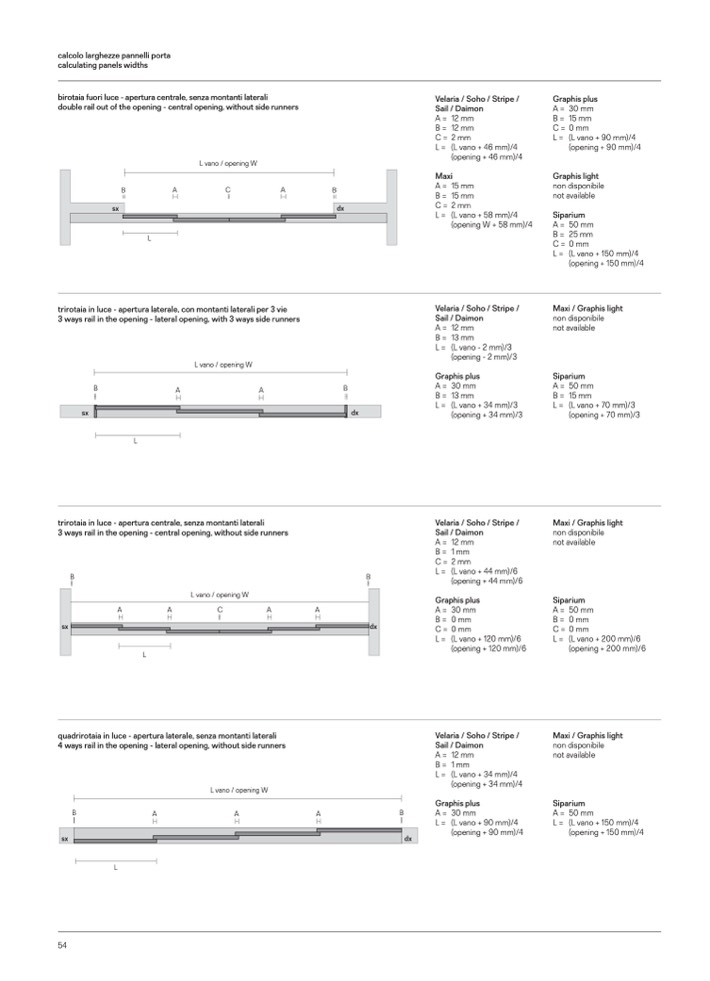

calcolo larghezze pannelli porta
calculating panels widths
birotaia fuori luce - apertura centrale, senza montanti laterali
double rail out of the opening - central opening, without side runners
L vano / opening W
trirotaia in luce - apertura laterale, con montanti laterali per 3 vie
3 ways rail in the opening - lateral opening, with 3 ways side runners
L vano / opening W
L
trirotaia in luce - apertura centrale, senza montanti laterali
3 ways rail in the opening - central opening, without side runners
Velaria / Soho / Stripe /
Sail / Daimon
A= 12 mm
B= 12 mm
C= 2mm
L= (L vano + 46 mm)/4
(opening + 46 mm)/4
Maxi
Graphis plus
A= 30 mm
B= 15 mm
C= 0mm
L= (L vano + 90 mm)/4
(opening + 90 mm)/4
Graphis light
non disponibile
not available
Siparium
sx
B
A
C
A
B
A=
B=
C =
L=
15 mm
15 mm
2 mm
(L vano + 58 mm)/4
(opening W + 58 mm)/4
dx
L
Velaria / Soho / Stripe /
Sail / Daimon
A= 12 mm
B= 13mm
L= (Lvano-2mm)/3
(opening - 2 mm)/3
Graphis plus
A= 30 mm
B= 13 mm
L= (L vano + 34 mm)/3
(opening + 34 mm)/3
Velaria / Soho / Stripe /
Sail / Daimon
Maxi / Graphis light
non disponibile
not available
Siparium
A= 50 mm
B= 15 mm
L= (L vano + 70 mm)/3
(opening + 70 mm)/3
Maxi / Graphis light
non disponibile
not available
Siparium
A= 50 mm
B= 0mm
C= 0mm
L= (L vano + 200 mm)/6
(opening + 200 mm)/6
Maxi / Graphis light
non disponibile
not available
Siparium
A=50mm
A=
B=
C =
L=
50 mm
25mm
0 mm
(Lvano+150mm)/4
(opening + 150 mm)/4
B
A
A
B
sx
dx
A=
B=
C =
L=
12 mm
1mm
2 mm
(Lvano+44mm)/6
(opening + 44 mm)/6
B
B
L vano / opening W
sx
A
A
C
A
A
dx
L
quadrirotaia in luce - apertura laterale, senza montanti laterali
4 ways rail in the opening - lateral opening, without side runners
Graphis plus
A= 30 mm
B= 0mm
C= 0mm
L= (L vano + 120 mm)/6
(opening + 120 mm)/6
Velaria / Soho / Stripe /
Sail / Daimon
A= 12 mm
B= 1mm
L= (Lvano+34mm)/4
(opening + 34 mm)/4
Graphis plus
L vano / opening W
B
A
A
A
B
A=30mm
L= (Lvano+90mm)/4
L =
(L vano + 150 mm)/4
(opening + 150 mm)/4
sx
dx
(opening + 90 mm)/4
L
