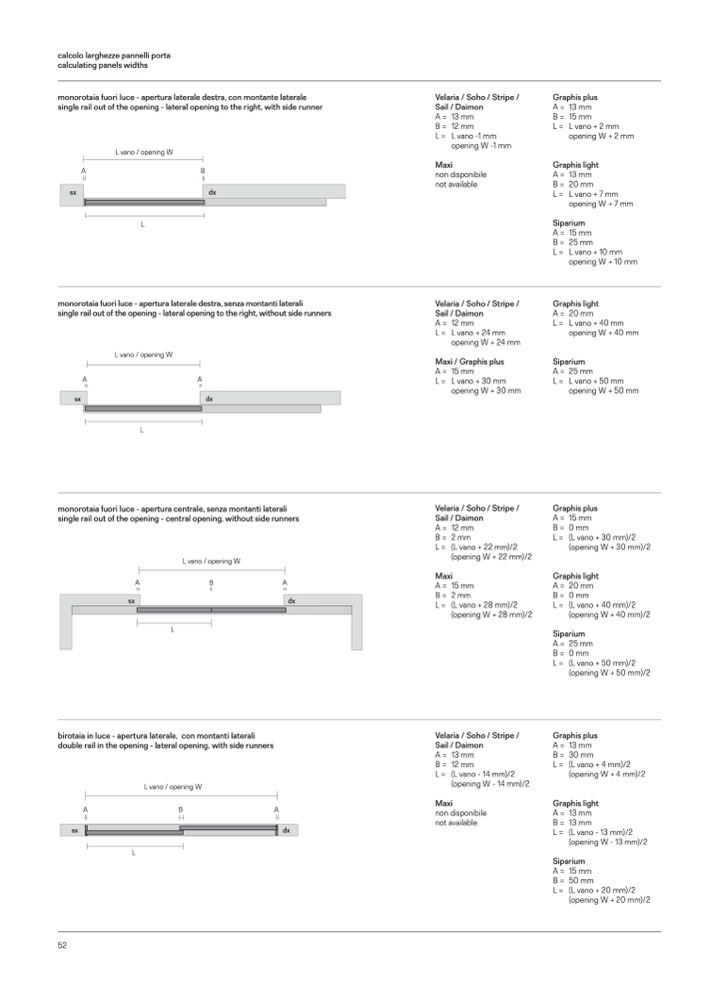

calcolo larghezze pannelli porta
calculating panels widths
monorotaia fuori luce - apertura laterale destra, con montante laterale
single rail out of the opening - lateral opening to the right, with side runner
L vano / opening W
L
monorotaia fuori luce - apertura laterale destra, senza montanti laterali
single rail out of the opening - lateral opening to the right, without side runners
L vano / opening W
L
monorotaia fuori luce - apertura centrale, senza montanti laterali
single rail out of the opening - central opening, without side runners
L vano / opening W
Velaria / Soho / Stripe /
Sail / Daimon
A= 13 mm
B= 12 mm
L= Lvano-1mm
opening W -1 mm
Maxi
non disponibile
not available
Velaria / Soho / Stripe /
Sail / Daimon
A= 12 mm
L= Lvano+24mm
opening W + 24 mm
Maxi / Graphis plus
A= 15 mm
L= Lvano+30mm
Graphis plus
A= 13 mm
B= 15 mm
L= Lvano+2mm
openingW+2mm
Graphis light
A= 13 mm
B= 20 mm
L= Lvano+7mm
openingW+7mm
Siparium
A= 15mm
B= 25mm
L= Lvano+10mm
opening W + 10 mm
Graphis light
A= 20 mm
L= Lvano+40mm
opening W + 40 mm
Siparium
A= 25mm
A
B
sx
dx
sx
A
A
dx
L= Lvano+50mm
openingW+30mm
openingW+50mm
A
B
A
sx
dx
L
birotaia in luce - apertura laterale, con montanti laterali
double rail in the opening - lateral opening, with side runners
Velaria / Soho / Stripe /
Sail / Daimon
A= 12 mm
B= 2mm
L= (L vano + 22 mm)/2
(opening W + 22 mm)/2
Maxi
A= 15 mm
B= 2mm
L= (L vano + 28 mm)/2
(opening W + 28 mm)/2
Velaria / Soho / Stripe /
Sail / Daimon
A= 13 mm
B= 12 mm
L= (L vano - 14 mm)/2
(opening W - 14 mm)/2
Maxi
non disponibile
not available
Graphis plus
A= 15 mm
B= 0mm
L= (L vano + 30 mm)/2
(opening W + 30 mm)/2
Graphis light
A= 20 mm
B= 0mm
L= (L vano + 40 mm)/2
(opening W + 40 mm)/2
Siparium
A= 25mm
B= 0mm
L= (Lvano+50mm)/2
(opening W + 50 mm)/2
Graphis plus
A= 13 mm
B= 30 mm
L= (L vano + 4 mm)/2
(opening W + 4 mm)/2
Graphis light
A= 13 mm
B= 13 mm
L= (Lvano-13mm)/2
(opening W - 13 mm)/2
Siparium
A= 15mm
B= 50mm
L= (Lvano+20mm)/2
L vano / opening W
L
A
B
A
sx
dx
(opening W + 20 mm)/2
