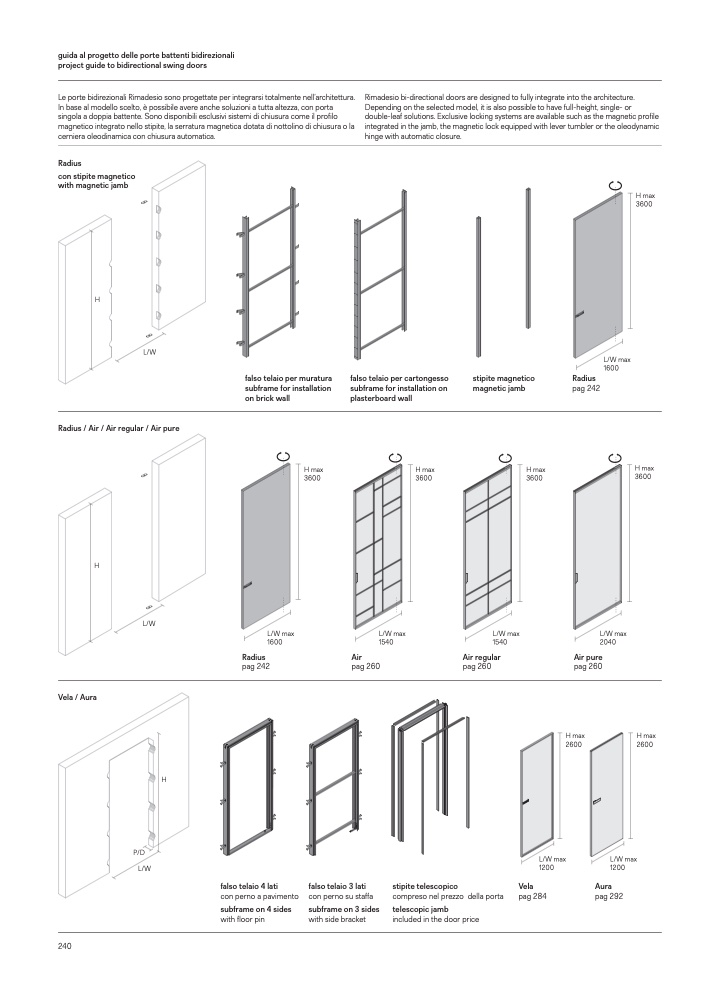

guida al progetto delle porte battenti bidirezionali

project guide to bidirectional swing doors

Le porte bidirezionali Rimadesio sono progettate per integrarsi totalmente nell’architettura.

In base al modello scelto, è possibile avere anche soluzioni a tutta altezza, con porta

singola a doppia battente. Sono disponibili esclusivi sistemi di chiusura come il profilo

magnetico integrato nello stipite, la serratura magnetica dotata di nottolino di chiusura o la

cerniera oleodinamica con chiusura automatica.

Radius

con stipite magnetico

with magnetic jamb

H

L/W

Radius / Air / Air regular / Air pure

Rimadesio bi-directional doors are designed to fully integrate into the architecture.

Depending on the selected model, it is also possible to have full-height, single- or

double-leaf solutions. Exclusive locking systems are available such as the magnetic profile

integrated in the jamb, the magnetic lock equipped with lever tumbler or the oleodynamic

hinge with automatic closure.

H max

3600

H

Vela / Aura

L/W

240

P/D

L/W

H

H max

2600

L/W max

1200

H max

2600

L/W max

1200

Aura

pag 292

falso telaio per muratura

subframe for installation

on brick wall

falso telaio per cartongesso

subframe for installation on

plasterboard wall

stipite magnetico

magnetic jamb

Radius

pag 242

L/W max

1600

H max

3600

L/W max

1600

Radius

pag 242

L/W max

1540

L/W max

1540

Air regular

pag 260

L/W max

2040

Air pure

pag 260

falso telaio 4 lati

con perno a pavimento

subframe on 4 sides

with floor pin

falso telaio 3 lati

con perno su staffa

subframe on 3 sides

with side bracket

stipite telescopico

Vela

H max

3600

H max

3600

H max

3600

Air

pag 260

compreso nel prezzo della porta

telescopic jamb

included in the door price

pag 284
