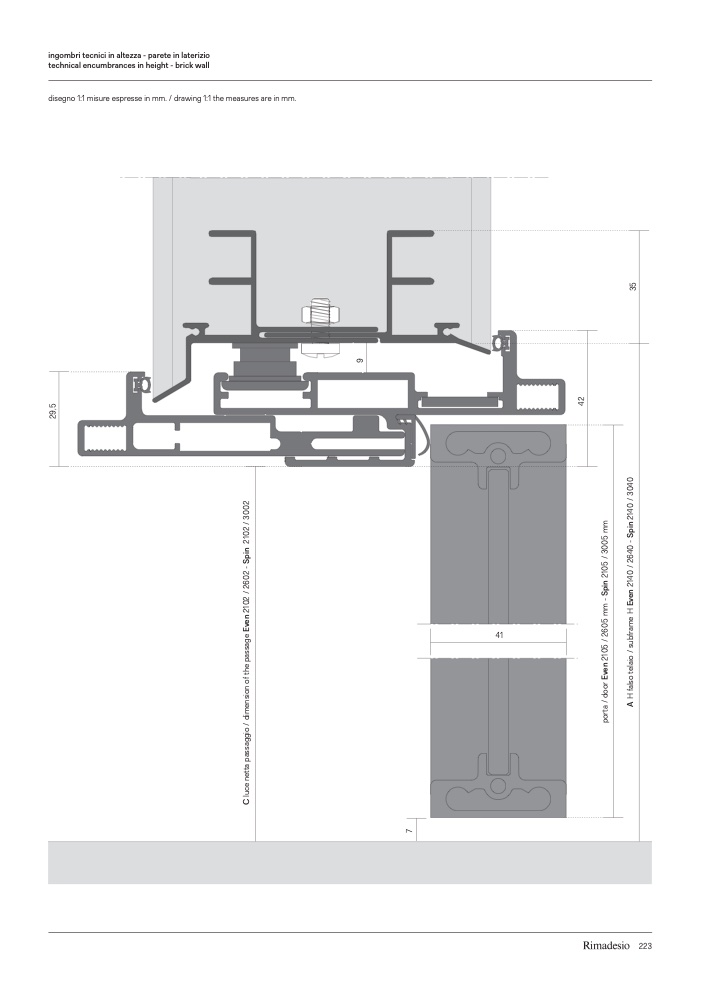

ingombri tecnici in altezza - parete in laterizio

technical encumbrances in height - brick wall

disegno 1:1 misure espresse in mm. / drawing 1:1 the measures are in mm.
