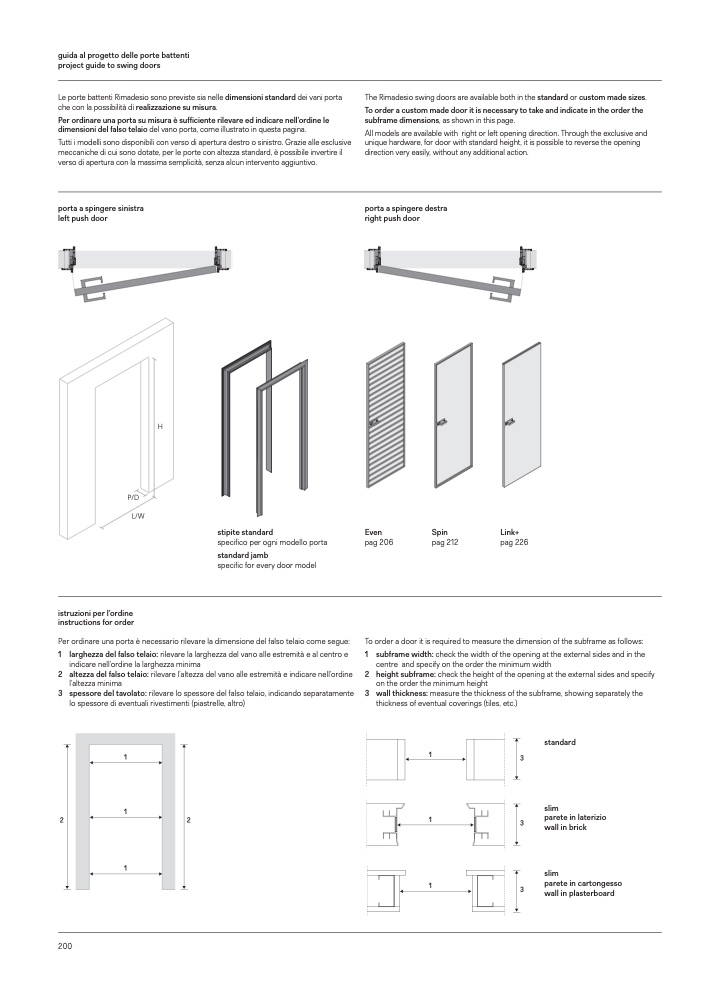

guida al progetto delle porte battenti

project guide to swing doors

Le porte battenti Rimadesio sono previste sia nelle dimensioni standard dei vani porta

che con la possibilità di realizzazione su misura.

Per ordinare una porta su misura è sufficiente rilevare ed indicare nell’ordine le

dimensioni del falso telaio del vano porta, come illustrato in questa pagina.

Tutti i modelli sono disponibili con verso di apertura destro o sinistro. Grazie alle esclusive

meccaniche di cui sono dotate, per le porte con altezza standard, è possibile invertire il

verso di apertura con la massima semplicità, senza alcun intervento aggiuntivo.

The Rimadesio swing doors are available both in the standard or custom made sizes.

To order a custom made door it is necessary to take and indicate in the order the

subframe dimensions, as shown in this page.

All models are available with right or left opening direction. Through the exclusive and

unique hardware, for door with standard height, it is possible to reverse the opening

direction very easily, without any additional action.

porta a spingere sinistra

left push door

porta a spingere destra

right push door

P/D

L/W

istruzioni per l’ordine

instructions for order

stipite standard

specifico per ogni modello porta

standard jamb

specific for every door model

Even

pag 206

Spin

pag 212

Link+

pag 226

H

Per ordinare una porta è necessario rilevare la dimensione del falso telaio come segue:

1 larghezza del falso telaio: rilevare la larghezza del vano alle estremità e al centro e

indicare nell’ordine la larghezza minima

2 altezza del falso telaio: rilevare l’altezza del vano alle estremità e indicare nell’ordine

l’altezza minima

3 spessore del tavolato: rilevare lo spessore del falso telaio, indicando separatamente

lo spessore di eventuali rivestimenti (piastrelle, altro)

To order a door it is required to measure the dimension of the subframe as follows:

1 subframe width: check the width of the opening at the external sides and in the

centre and specify on the order the minimum width

2 height subframe: check the height of the opening at the external sides and specify

on the order the minimum height

3 wall thickness: measure the thickness of the subframe, showing separately the

thickness of eventual coverings (tiles, etc.)

200

1

1

3

standard

slim

parete in laterizio

wall in brick

slim

parete in cartongesso

wall in plasterboard

1

2

2

1

3

3

1

1
