Siparium

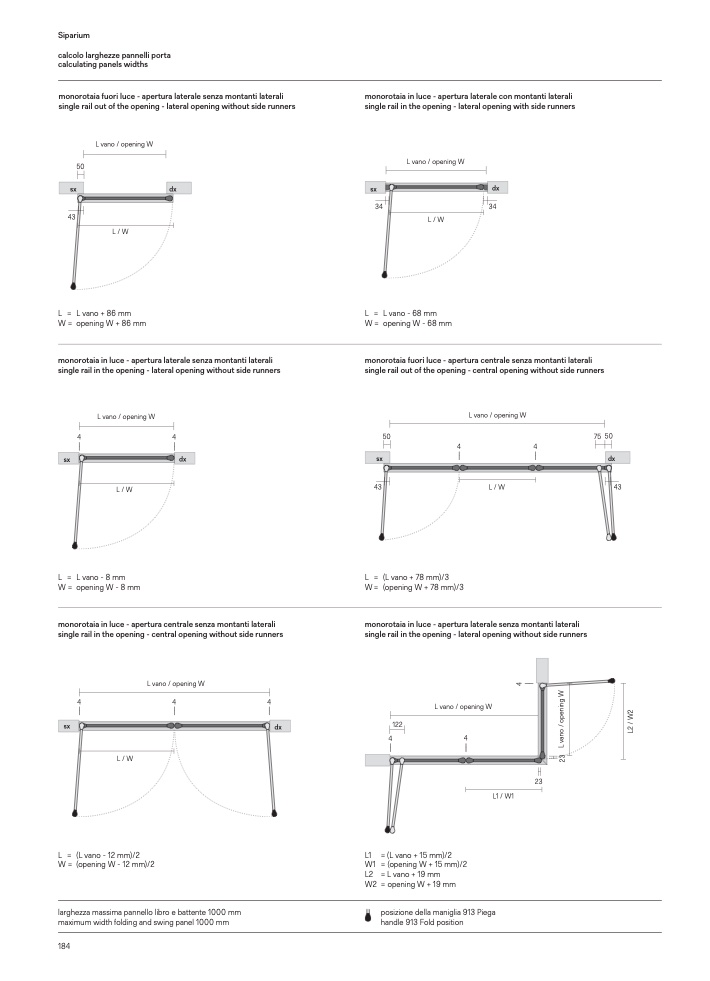

calcolo larghezze pannelli porta
calculating panels widths
monorotaia fuori luce - apertura laterale senza montanti laterali
single rail out of the opening - lateral opening without side runners
monorotaia in luce - apertura laterale con montanti laterali
single rail in the opening - lateral opening with side runners
L vano / opening W
50
43
sx
34
L vano / opening W
L/ W
dx
34
sx
dx
L/ W
L = Lvano+86mm
W= openingW+86mm
monorotaia in luce - apertura laterale senza montanti laterali
single rail in the opening - lateral opening without side runners
L = Lvano-68mm
W= openingW-68mm
4
L vano / opening W
L/ W
4
50
L vano / opening W
4
4
75 50
43
monorotaia fuori luce - apertura centrale senza montanti laterali
single rail out of the opening - central opening without side runners
sx
dx
sx
dx
L = Lvano-8mm
W = opening W - 8 mm
43
L / W
L = (Lvano+78mm)/3
W = (opening W + 78 mm)/3
monorotaia in luce - apertura laterale senza montanti laterali
single rail in the opening - lateral opening without side runners
monorotaia in luce - apertura centrale senza montanti laterali
single rail in the opening - central opening without side runners
L vano / opening W
4
4
4
sx
dx
L/ W
L = (Lvano-12mm)/2
W = (opening W - 12 mm)/2
larghezza massima pannello libro e battente 1000 mm
maximum width folding and swing panel 1000 mm
L vano / opening W
122
4
4
L1 =(Lvano+15mm)/2
W1 = (opening W + 15 mm)/2
L2 =Lvano+19mm
W2 =openingW+19mm
23
L1 / W1
posizione della maniglia 913 Piega
handle 913 Fold position
184
2
3
L
v
a
n
o
/
o
p
e
n
i
n
g
W
L
2
/
W
2
4
