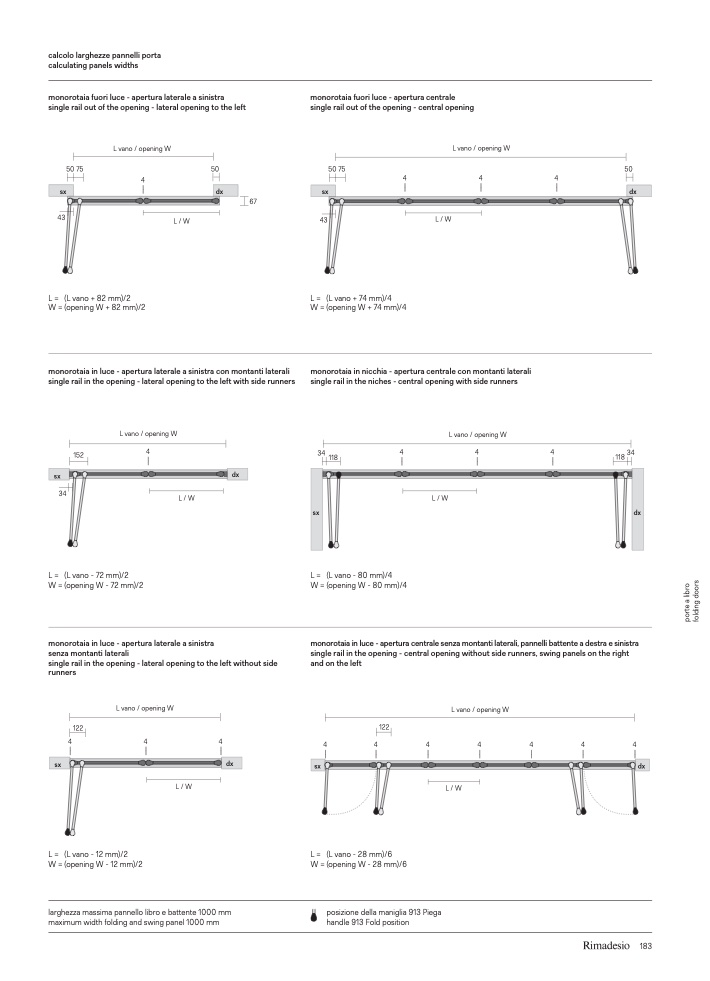

calcolo larghezze pannelli porta
calculating panels widths
monorotaia fuori luce - apertura laterale a sinistra
single rail out of the opening - lateral opening to the left
monorotaia fuori luce - apertura centrale
single rail out of the opening - central opening
L vano / opening W
5075
50
5075
4
L vano / opening W
4
4
4
L / W
50
sx
L= (Lvano-72mm)/2
W = (opening W - 72 mm)/2
L= (Lvano-80mm)/4
W = (opening W - 80 mm)/4
dx
67
sx
dx
43
L= (Lvano+82mm)/2
W = (opening W + 82 mm)/2
L / W
43
L= (Lvano+74mm)/4
W = (opening W + 74 mm)/4
monorotaia in luce - apertura laterale a sinistra con montanti laterali
single rail in the opening - lateral opening to the left with side runners
monorotaia in nicchia - apertura centrale con montanti laterali
single rail in the niches - central opening with side runners
152
34
L vano / opening W
4
34
118
L vano / opening W
4
4
4
L/ W
118
34
sx
dx
L / W
sx
dx
monorotaia in luce - apertura laterale a sinistra
senza montanti laterali
single rail in the opening - lateral opening to the left without side
runners
monorotaia in luce - apertura centrale senza montanti laterali, pannelli battente a destra e sinistra
single rail in the opening - central opening without side runners, swing panels on the right
and on the left
L vano / opening W
122
4
4
4
4
4
4
4
sx
dx
L vano / opening W
122
4
4
4
L / W
L= (Lvano-12mm)/2
W = (opening W - 12 mm)/2
larghezza massima pannello libro e battente 1000 mm
maximum width folding and swing panel 1000 mm
sx
dx
L= (Lvano-28mm)/6
W = (opening W - 28 mm)/6
posizione della maniglia 913 Piega
handle 913 Fold position
L/ W
183
