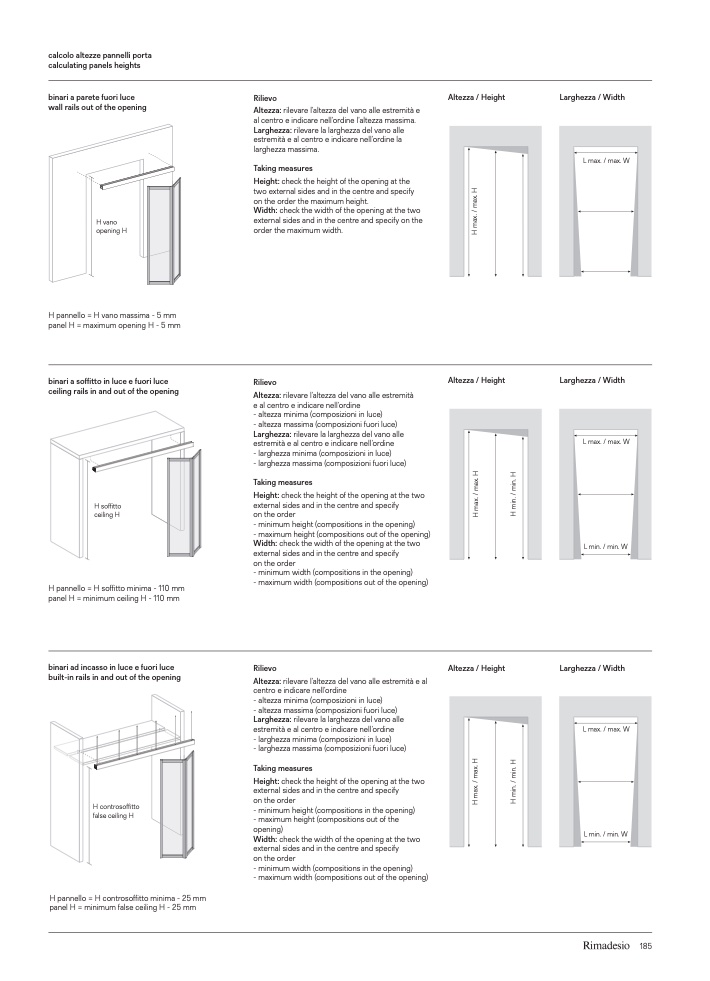

calcolo altezze pannelli porta

calculating panels heights

binari a parete fuori luce

wall rails out of the opening

H vano

opening H

H pannello = H vano massima - 5 mm

panel H = maximum opening H - 5 mm

binari a soffitto in luce e fuori luce

ceiling rails in and out of the opening

H soffitto

ceiling H

H pannello = H soffitto minima - 110 mm

panel H = minimum ceiling H - 110 mm

binari ad incasso in luce e fuori luce

built-in rails in and out of the opening

H controsoffitto

false ceiling H

H pannello = H controsoffitto minima - 25 mm

panel H = minimum false ceiling H - 25 mm

Rilievo

Altezza: rilevare l’altezza del vano alle estremità e

al centro e indicare nell’ordine l’altezza massima.

Larghezza: rilevare la larghezza del vano alle

estremità e al centro e indicare nell’ordine la

larghezza massima.

Taking measures

Height: check the height of the opening at the

two external sides and in the centre and specify

on the order the maximum height.

Width: check the width of the opening at the two

external sides and in the centre and specify on the

order the maximum width.

Altezza / Height

Larghezza / Width

L max. / max. W

Rilievo

Altezza: rilevare l’altezza del vano alle estremità

e al centro e indicare nell’ordine

- altezza minima (composizioni in luce)

- altezza massima (composizioni fuori luce)

Larghezza: rilevare la larghezza del vano alle

estremità e al centro e indicare nell’ordine

- larghezza minima (composizioni in luce)

- larghezza massima (composizioni fuori luce)

Taking measures

Height: check the height of the opening at the two

external sides and in the centre and specify

on the order

- minimum height (compositions in the opening)

- maximum height (compositions out of the opening)

Width: check the width of the opening at the two

external sides and in the centre and specify

on the order

- minimum width (compositions in the opening)

- maximum width (compositions out of the opening)

Rilievo

Altezza: rilevare l’altezza del vano alle estremità e al

centro e indicare nell’ordine

- altezza minima (composizioni in luce)

- altezza massima (composizioni fuori luce)

Larghezza: rilevare la larghezza del vano alle

estremità e al centro e indicare nell’ordine

- larghezza minima (composizioni in luce)

- larghezza massima (composizioni fuori luce)

Taking measures

Height: check the height of the opening at the two

external sides and in the centre and specify

on the order

- minimum height (compositions in the opening)

- maximum height (compositions out of the

opening)

Width: check the width of the opening at the two

external sides and in the centre and specify

on the order

- minimum width (compositions in the opening)

- maximum width (compositions out of the opening)

Altezza / Height

Larghezza / Width

L max. / max. W

Altezza / Height

L min. / min. W

Larghezza / Width

L max. / max. W

L min. / min. W

185
