CONFRESH shower panel, stainless steel, thermostat, piezo switch, DN15, fresh water station

R

e

c

o

m

m

e

n

d

e

d

m

o

u

n

t

i

n

g

h

e

i

g

h

t

S

h

o

w

e

r

s

e

l

e

c

t

r

o

n

i

c

68

Hygienic flush (mains/battery):

Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by

programming via the piezo switch or the Service APP per shower.

Hygienic flush CNX:

The hygienic flush can be set and disabled for electronic showers, integrated into the CNX

Water Management System, by the software parameter settings per shower or shower group

as interval or calendar function.

Cleaning stop (mains/battery):

The cleaning stop can be activated in electronic showers by positioning a magnet - RC Switch,

on the cover respectively cover plate. Shower function via actuation of the piezo switch is

interrupted for the time the magnet is positioned there.

Cleaning stop CNX:

The operation stop (cleaning stop), interruption of the shower function, can be set in

electronic showers, integrated into the CNX Water Management System, by the software

parameter settings per shower or shower group as a calendar function.

CNX Water Management System:

Integration of the shower into the software-controlled Water Management System for the

automatic depiction of hygiene, system and safety functions of electronic showers, lavatory

faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and

device groups. Tamper-proof documentation of all operating, action and function messages.

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

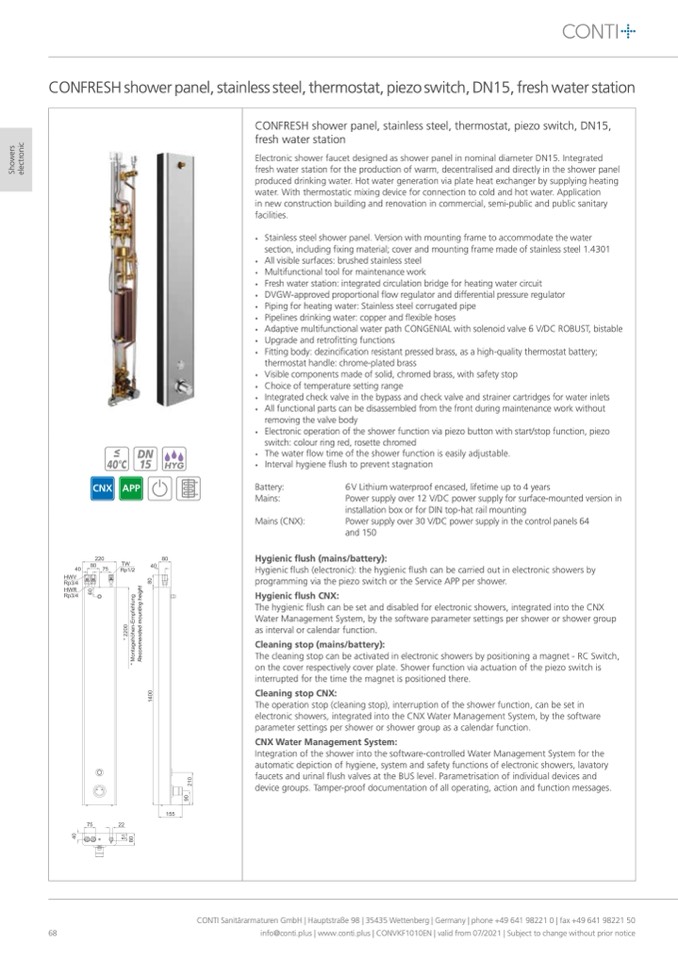

CONFRESH shower panel, stainless steel, thermostat, piezo switch, DN15,

fresh water station

Electronic shower faucet designed as shower panel in nominal diameter DN15. Integrated

fresh water station for the production of warm, decentralised and directly in the shower panel

produced drinking water. Hot water generation via plate heat exchanger by supplying heating

water. With thermostatic mixing device for connection to cold and hot water. Application

in new construction building and renovation in commercial, semi-public and public sanitary

facilities.

•

Stainless steel shower panel. Version with mounting frame to accommodate the water

section, including fixing material; cover and mounting frame made of stainless steel 1.4301

•

All visible surfaces: brushed stainless steel

•

Multifunctional tool for maintenance work

•

Fresh water station: integrated circulation bridge for heating water circuit

•

DVGW-approved proportional flow regulator and differential pressure regulator

•

Piping for heating water: Stainless steel corrugated pipe

•

Pipelines drinking water: copper and flexible hoses

•

Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable

•

Upgrade and retrofitting functions

•

Fitting body: dezincification resistant pressed brass, as a high-quality thermostat battery;

thermostat handle: chrome-plated brass

•

Visible components made of solid, chromed brass, with safety stop

•

Choice of temperature setting range

•

Integrated check valve in the bypass and check valve and strainer cartridges for water inlets

•

All functional parts can be disassembled from the front during maintenance work without

removing the valve body

•

Electronic operation of the shower function via piezo button with start/stop function, piezo

switch: colour ring red, rosette chromed

•

The water flow time of the shower function is easily adjustable.

•

Interval hygiene flush to prevent stagnation

Battery:

Mains:

Mains (CNX):

6 V Lithium waterproof encased, lifetime up to 4 years

Power supply over 12 V/DC power supply for surface-mounted version in

installation box or for DIN top-hat rail mounting

Power supply over 30 V/DC power supply in the control panels 64

and 150
