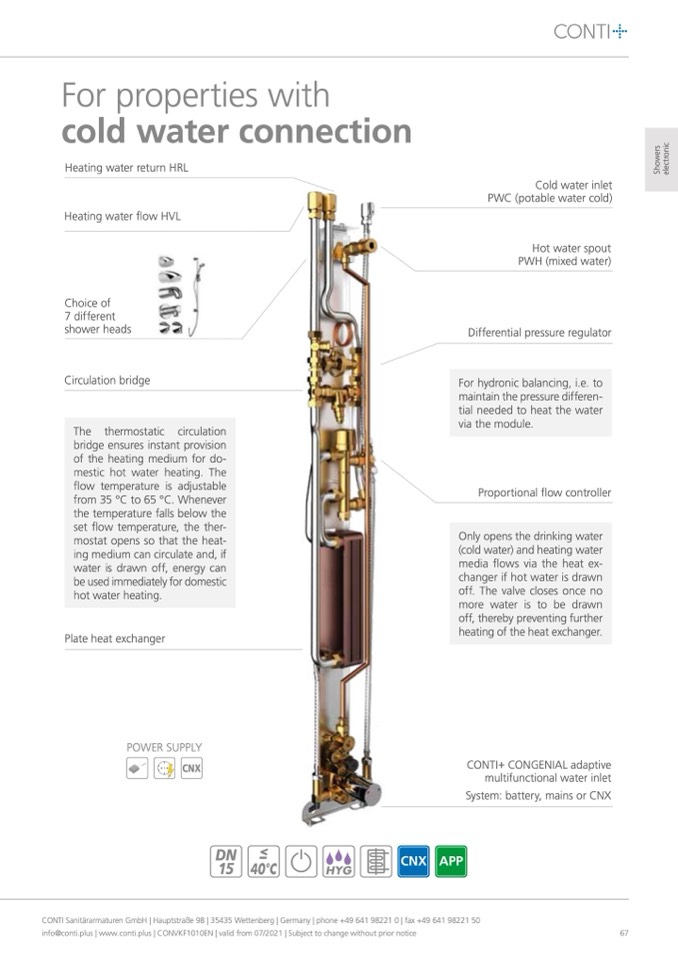

For properties with

cold water connection

Heating water return HRL

Heating water flow HVL

Choice of

7 different

shower heads

Circulation bridge

Cold water inlet

PWC (potable water cold)

Hot water spout

PWH (mixed water)

Differential pressure regulator

For hydronic balancing, i.e. to

maintain the pressure differen-

tial needed to heat the water

via the module.

The thermostatic circulation

bridge ensures instant provision

of the heating medium for do-

mestic hot water heating. The

flow temperature is adjustable

from 35 °C to 65 °C. Whenever

the temperature falls below the

set flow temperature, the ther-

mostat opens so that the heat-

ing medium can circulate and, if

water is drawn off, energy can

be used immediately for domestic

hot water heating.

Plate heat exchanger

POWER SUPPLY

Proportional flow controller

Only opens the drinking water

(cold water) and heating water

media flows via the heat ex-

changer if hot water is drawn

off. The valve closes once no

more water is to be drawn

off, thereby preventing further

heating of the heat exchanger.

CONTI+ CONGENIAL adaptive

multifunctional water inlet

System: battery, mains or CNX

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
