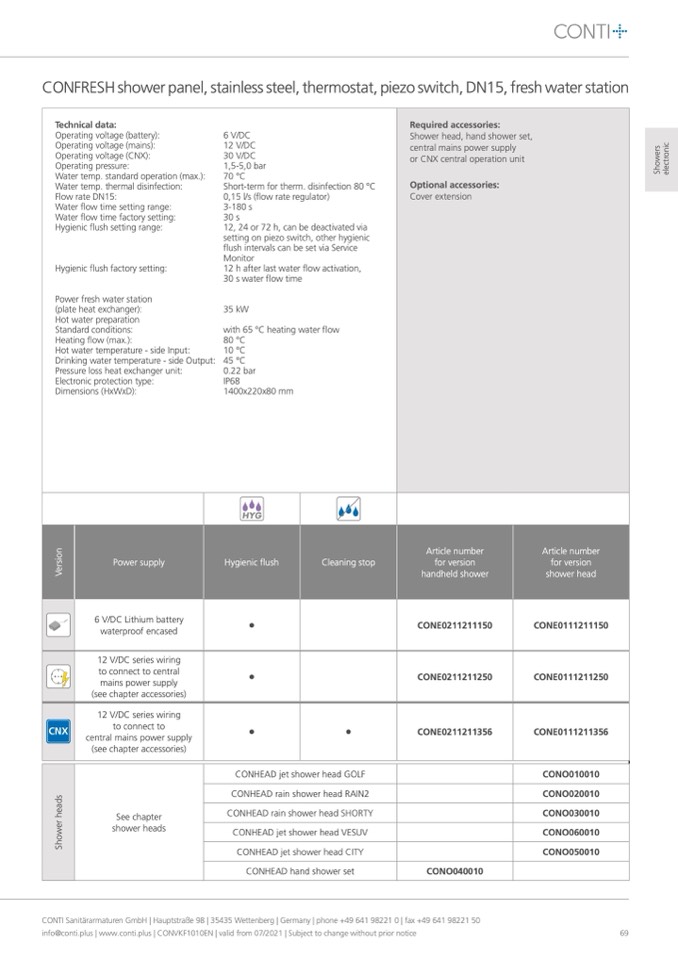

CONFRESH shower panel, stainless steel, thermostat, piezo switch, DN15, fresh water station

Technical data:

Operating voltage (battery):

Operating voltage (mains):

Operating voltage (CNX):

Operating pressure:

Water temp. standard operation (max.):

Water temp. thermal disinfection:

Flow rate DN15:

Water flow time setting range:

Water flow time factory setting:

Hygienic flush setting range:

Hygienic flush factory setting:

Power fresh water station

(plate heat exchanger):

Hot water preparation

Standard conditions:

Heating flow (max.):

Hot water temperature - side Input:

Drinking water temperature - side Output:

Pressure loss heat exchanger unit:

Electronic protection type:

Dimensions (HxWxD):

6 V/DC

12 V/DC

30 V/DC

1,5-5,0 bar

70 °C

Short-term for therm. disinfection 80 °C

0,15 l/s (flow rate regulator)

3-180 s

30 s

12, 24 or 72 h, can be deactivated via

setting on piezo switch, other hygienic

flush intervals can be set via Service

Monitor

12 h after last water flow activation,

30 s water flow time

35 kW

with 65 °C heating water flow

80 °C

10 °C

45 °C

0.22 bar

IP68

1400x220x80 mm

Required accessories:

Shower head, hand shower set,

central mains power supply

or CNX central operation unit

Optional accessories:

Cover extension

Power supply

Hygienic flush

Cleaning stop

Article number

for version

handheld shower

Article number

for version

shower head

6 V/DC Lithium battery

waterproof encased

•

CONE0211211150

CONE0111211150

12 V/DC series wiring

to connect to central

mains power supply

(see chapter accessories)

•

CONE0211211250

CONE0111211250

12 V/DC series wiring

to connect to

central mains power supply

(see chapter accessories)

•

•

CONE0211211356

CONE0111211356

See chapter

shower heads

CONHEAD jet shower head GOLF

CONO010010

CONHEAD rain shower head RAIN2

CONO020010

CONHEAD rain shower head SHORTY

CONO030010

CONHEAD jet shower head VESUV

CONO060010

CONHEAD jet shower head CITY

CONO050010

CONHEAD hand shower set

CONO040010
