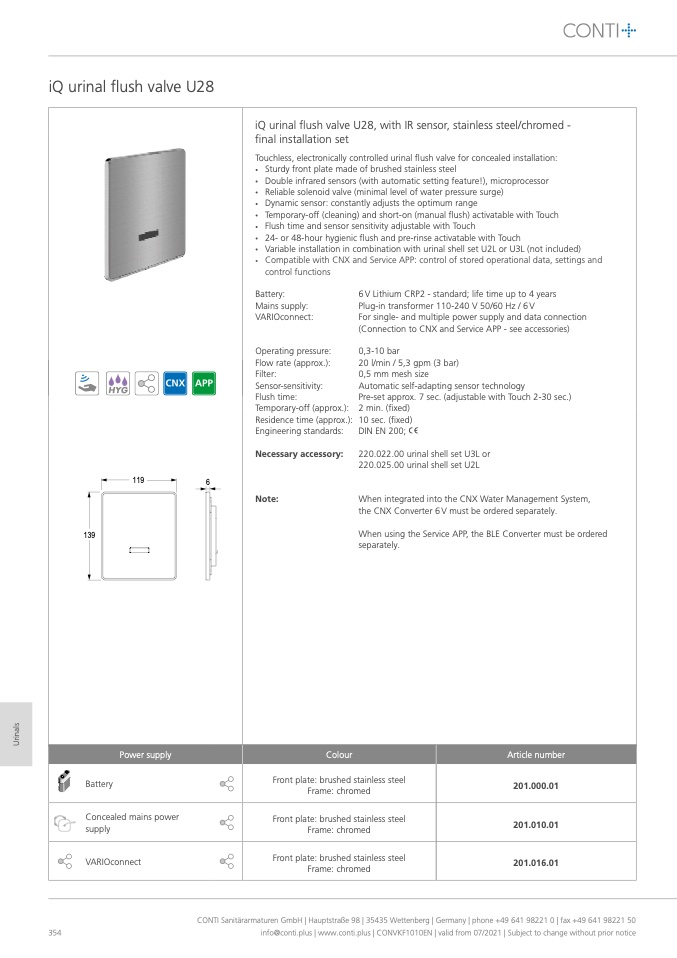

iQ urinal flush valve U28, with IR sensor, stainless steel/chromed -

final installation set

Touchless, electronically controlled urinal flush valve for concealed installation:

•

Sturdy front plate made of brushed stainless steel

•

Double infrared sensors (with automatic setting feature!), microprocessor

•

Reliable solenoid valve (minimal level of water pressure surge)

•

Dynamic sensor: constantly adjusts the optimum range

•

Temporary-off (cleaning) and short-on (manual flush) activatable with Touch

•

Flush time and sensor sensitivity adjustable with Touch

•

24- or 48-hour hygienic flush and pre-rinse activatable with Touch

•

Variable installation in combination with urinal shell set U2L or U3L (not included)

•

Compatible with CNX and Service APP: control of stored operational data, settings and

control functions

Battery:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Filter:

Sensor-sensitivity:

Flush time:

Temporary-off (approx.):

Residence time (approx.):

Engineering standards:

Necessary accessory:

Note:

6 V Lithium CRP2 - standard; life time up to 4 years

Plug-in transformer 110-240 V 50/60 Hz / 6 V

For single- and multiple power supply and data connection

(Connection to CNX and Service APP - see accessories)

0,3-10 bar

20 l/min / 5,3 gpm (3 bar)

0,5 mm mesh size

Automatic self-adapting sensor technology

Pre-set approx. 7 sec. (adjustable with Touch 2-30 sec.)

2 min. (fixed)

10 sec. (fixed)

DIN EN 200;

220.022.00 urinal shell set U3L or

220.025.00 urinal shell set U2L

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

Colour

Article number

Front plate: brushed stainless steel

Frame: chromed

201.000.01

Front plate: brushed stainless steel

Frame: chromed

201.010.01

Front plate: brushed stainless steel

Frame: chromed

201.016.01

iQ urinal flush valve U28

119

139

Power supply

Battery

Concealed mains power

supply

VARIOconnect

354
