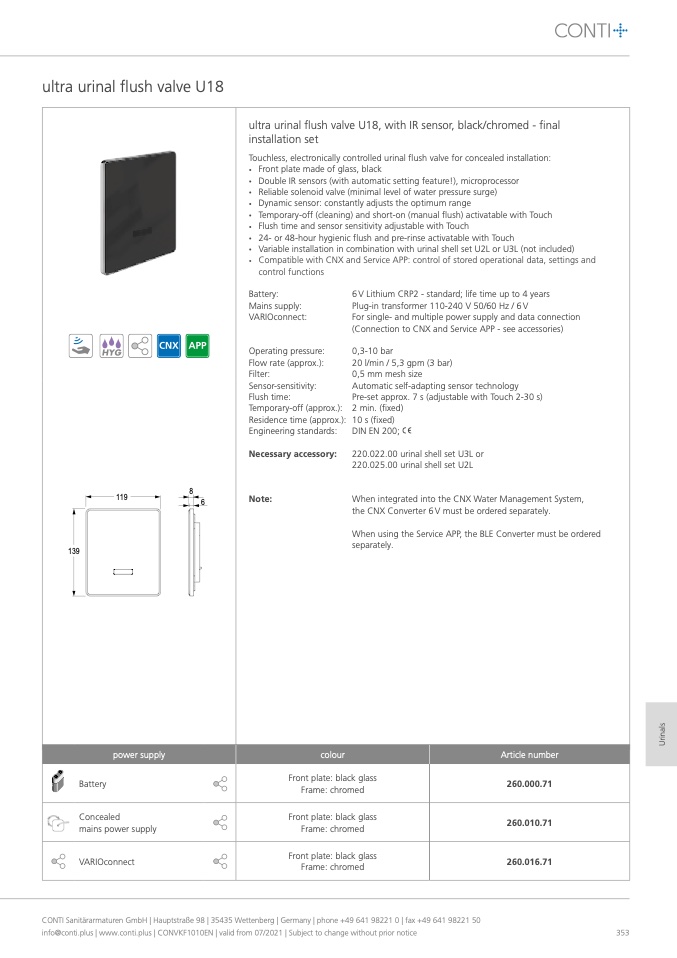

ultra urinal flush valve U18
119
8
6
139
power supply
Battery
Concealed
mains power supply
VARIOconnect
ultra urinal flush valve U18, with IR sensor, black/chromed - final
installation set
Touchless, electronically controlled urinal flush valve for concealed installation:
•
Front plate made of glass, black
•
Double IR sensors (with automatic setting feature!), microprocessor
•
Reliable solenoid valve (minimal level of water pressure surge)
•
Dynamic sensor: constantly adjusts the optimum range
•
Temporary-off (cleaning) and short-on (manual flush) activatable with Touch
•
Flush time and sensor sensitivity adjustable with Touch
•
24- or 48-hour hygienic flush and pre-rinse activatable with Touch
•
Variable installation in combination with urinal shell set U2L or U3L (not included)
•
Compatible with CNX and Service APP: control of stored operational data, settings and
control functions
Battery:
Mains supply:
VARIOconnect:
Operating pressure:
Flow rate (approx.):
Filter:
Sensor-sensitivity:
Flush time:
Temporary-off (approx.):
Residence time (approx.):
Engineering standards:
Necessary accessory:
Note:
6 V Lithium CRP2 - standard; life time up to 4 years
Plug-in transformer 110-240 V 50/60 Hz / 6 V
For single- and multiple power supply and data connection
(Connection to CNX and Service APP - see accessories)
0,3-10 bar
20 l/min / 5,3 gpm (3 bar)
0,5 mm mesh size
Automatic self-adapting sensor technology
Pre-set approx. 7 s (adjustable with Touch 2-30 s)
2 min. (fixed)
10 s (fixed)
DIN EN 200;
220.022.00 urinal shell set U3L or
220.025.00 urinal shell set U2L
When integrated into the CNX Water Management System,
the CNX Converter 6 V must be ordered separately.
When using the Service APP, the BLE Converter must be ordered
separately.
colour
Article number
Front plate: black glass
Frame: chromed
260.000.71
Front plate: black glass
Frame: chromed
260.010.71
Front plate: black glass
Frame: chromed
260.016.71
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50
info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
