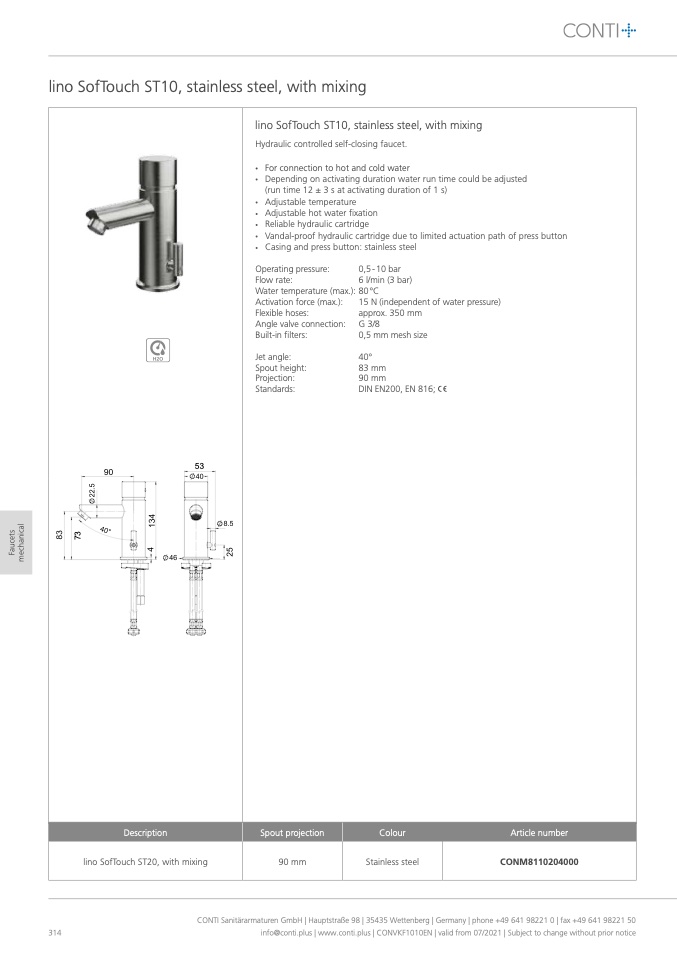

lino SofTouch ST10, stainless steel, with mixing

lino SofTouch ST10, stainless steel, with mixing

314

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

Description

Spout projection

90 mm

Colour

Stainless steel

Article number

CONM8110204000

lino SofTouch ST20, with mixing

53

Hydraulic controlled self-closing faucet.

•

For connection to hot and cold water

•

Depending on activating duration water run time could be adjusted

(run time 12 ± 3 s at activating duration of 1 s)

•

Adjustable temperature

•

Adjustable hot water fixation

•

Reliable hydraulic cartridge

•

Vandal-proof hydraulic cartridge due to limited actuation path of press button

•

Casing and press button: stainless steel

Operating pressure:

Flow rate:

Water temperature (max.):

Activation force (max.):

Flexible hoses:

Angle valve connection:

Built-in filters:

Jet angle:

Spout height:

Projection:

Standards:

0,5-10 bar

6 l/min (3 bar)

80°C

15 N (independent of water pressure)

approx. 350 mm

G 3/8

0,5 mm mesh size

40°

83 mm

90 mm

DIN EN200, EN 816;
