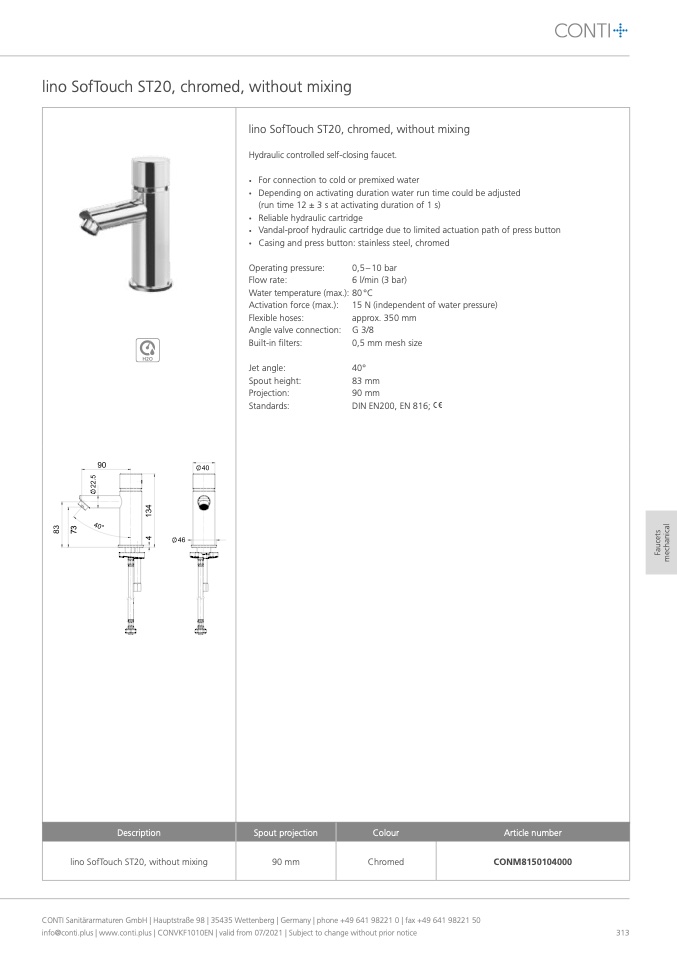

lino SofTouch ST20, chromed, without mixing

F

a

u

c

e

t

s

m

e

c

h

a

n

i

c

a

l

7

3

Description

lino SofTouch ST20, without mixing

Spout projection

90 mm

Colour

Chromed

Article number

CONM8150104000

lino SofTouch ST20, chromed, without mixing

Hydraulic controlled self-closing faucet.

•

For connection to cold or premixed water

•

Depending on activating duration water run time could be adjusted

(run time 12 ± 3 s at activating duration of 1 s)

•

Reliable hydraulic cartridge

•

Vandal-proof hydraulic cartridge due to limited actuation path of press button

•

Casing and press button: stainless steel, chromed

Operating pressure:

Flow rate:

Water temperature (max.):

Activation force (max.):

Flexible hoses:

Angle valve connection:

Built-in filters:

Jet angle:

Spout height:

Projection:

Standards:

0,5–10 bar

6 l/min (3 bar)

80 °C

15 N (independent of water pressure)

approx. 350 mm

G 3/8

0,5 mm mesh size

40°

83 mm

90 mm

DIN EN200, EN 816;
