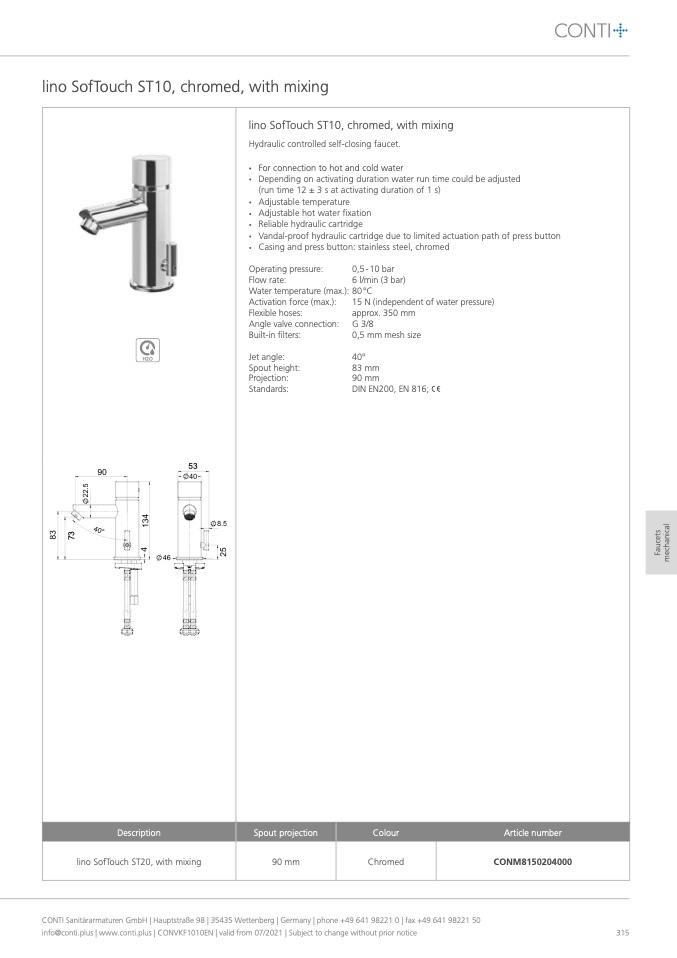

lino SofTouch ST10, chromed, with mixing

lino SofTouch ST10, chromed, with mixing

Description

Spout projection

90 mm

Colour

Chromed

Article number

CONM8150204000

lino SofTouch ST20, with mixing

53

Hydraulic controlled self-closing faucet.

•

For connection to hot and cold water

•

Depending on activating duration water run time could be adjusted

(run time 12 ± 3 s at activating duration of 1 s)

•

Adjustable temperature

•

Adjustable hot water fixation

•

Reliable hydraulic cartridge

•

Vandal-proof hydraulic cartridge due to limited actuation path of press button

•

Casing and press button: stainless steel, chromed

Operating pressure:

Flow rate:

Water temperature (max.):

Activation force (max.):

Flexible hoses:

Angle valve connection:

Built-in filters:

Jet angle:

Spout height:

Projection:

Standards:

0,5-10 bar

6 l/min (3 bar)

80°C

15 N (independent of water pressure)

approx. 350 mm

G 3/8

0,5 mm mesh size

40°

83 mm

90 mm

DIN EN200, EN 816;

F

a

u

c

e

t

s

m

e

c

h

a

n

i

c

a

l

7

3
