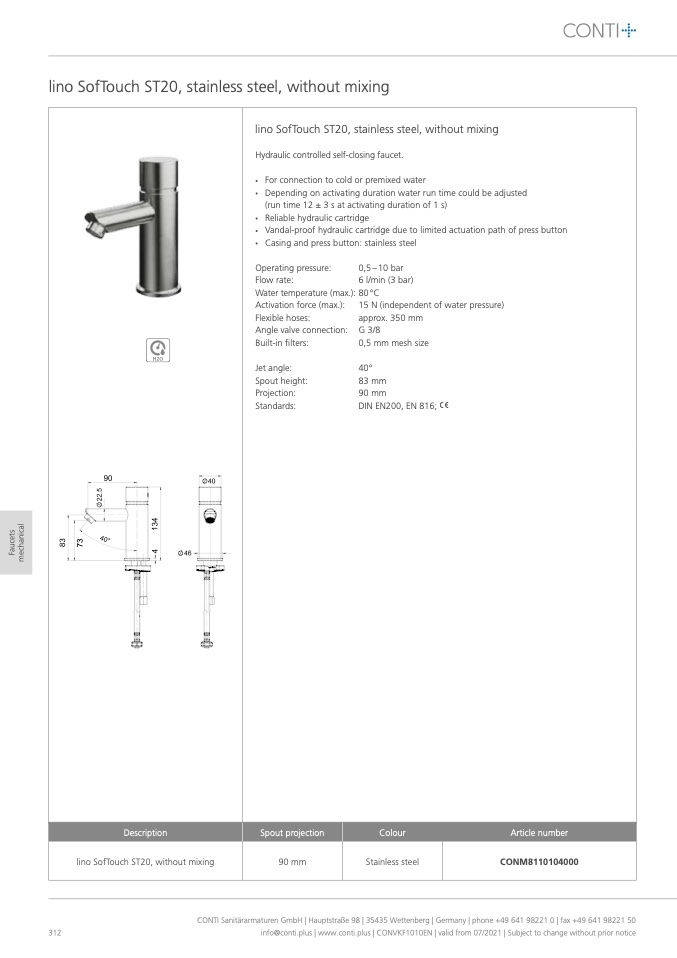

lino SofTouch ST20, stainless steel, without mixing

F

a

u

c

e

t

s

m

e

c

h

a

n

i

c

a

l

7

3

312

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

Description

lino SofTouch ST20, without mixing

Spout projection

90 mm

Colour

Stainless steel

Article number

CONM8110104000

lino SofTouch ST20, stainless steel, without mixing

Hydraulic controlled self-closing faucet.

•

For connection to cold or premixed water

•

Depending on activating duration water run time could be adjusted

(run time 12 ± 3 s at activating duration of 1 s)

•

Reliable hydraulic cartridge

•

Vandal-proof hydraulic cartridge due to limited actuation path of press button

•

Casing and press button: stainless steel

Operating pressure:

Flow rate:

Water temperature (max.):

Activation force (max.):

Flexible hoses:

Angle valve connection:

Built-in filters:

Jet angle:

Spout height:

Projection:

Standards:

0,5–10 bar

6 l/min (3 bar)

80 °C

15 N (independent of water pressure)

approx. 350 mm

G 3/8

0,5 mm mesh size

40°

83 mm

90 mm

DIN EN200, EN 816;
