210

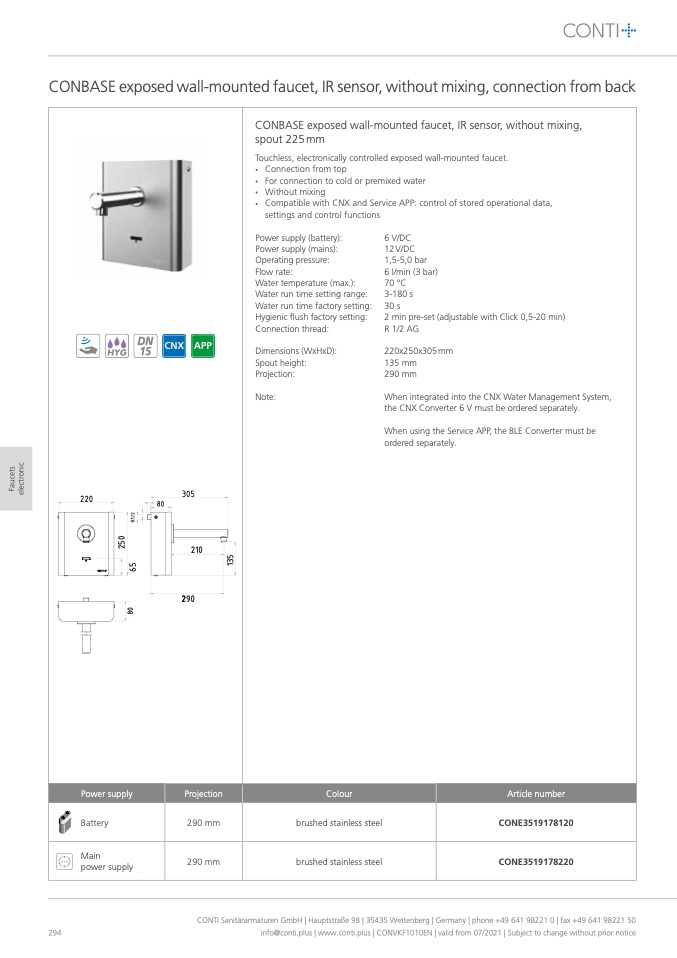

CONBASE exposed wall-mounted faucet, IR sensor, without mixing,

spout 225mm

Touchless, electronically controlled exposed wall-mounted faucet.

•

Connection from top

•

For connection to cold or premixed water

•

Without mixing

•

Compatible with CNX and Service APP: control of stored operational data,

settings and control functions

Power supply (battery):

Power supply (mains):

Operating pressure:

Flow rate:

Water temperature (max.):

Water run time setting range:

Water run time factory setting:

Hygienic flush factory setting:

Connection thread:

Dimensions (WxHxD):

Spout height:

Projection:

Note:

6 V/DC

12V/DC

1,5-5,0 bar

6 l/min (3 bar)

70 °C

3-180 s

30 s

2 min pre-set (adjustable with Click 0,5-20 min)

R 1/2 AG

220x250x305mm

135 mm

290 mm

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be

ordered separately.

Projection

Colour

Article number

290 mm

brushed stainless steel

CONE3519178120

290 mm

brushed stainless steel

CONE3519178220

CONBASE exposed wall-mounted faucet, IR sensor, without mixing, connection from back

220

305

80

290

Power supply

Battery

Main

power supply

294

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
