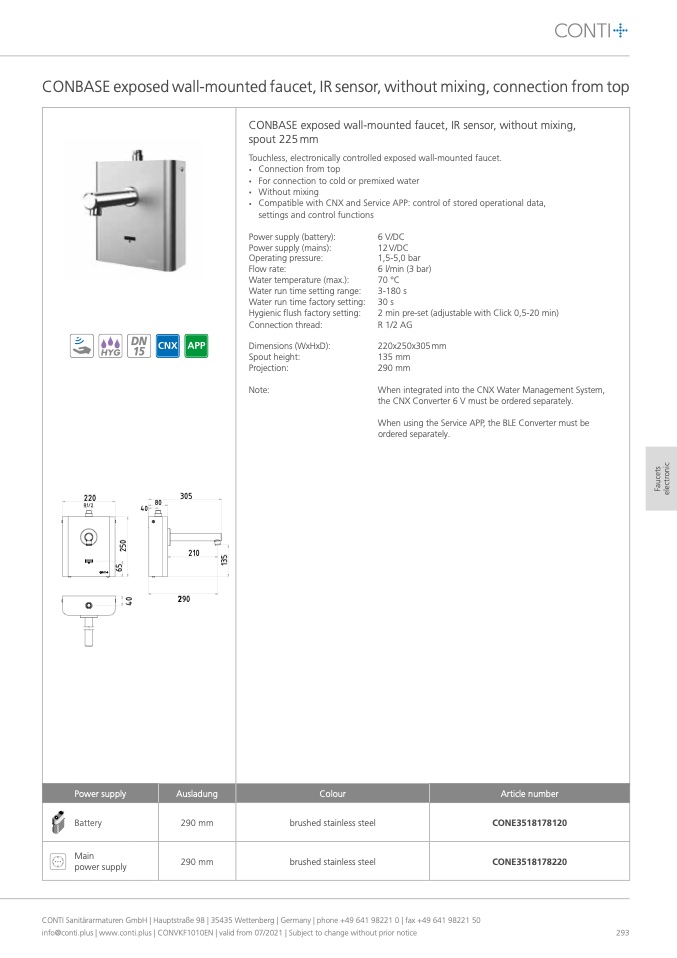

CONBASE exposed wall-mounted faucet, IR sensor, without mixing, connection from top

CONBASE exposed wall-mounted faucet, IR sensor, without mixing,

spout 225mm

Touchless, electronically controlled exposed wall-mounted faucet.

•

Connection from top

•

For connection to cold or premixed water

•

Without mixing

•

Compatible with CNX and Service APP: control of stored operational data,

settings and control functions

Power supply (battery):

Power supply (mains):

Operating pressure:

Flow rate:

Water temperature (max.):

Water run time setting range:

Water run time factory setting:

Hygienic flush factory setting:

Connection thread:

Dimensions (WxHxD):

Spout height:

Projection:

Note:

6 V/DC

12V/DC

1,5-5,0 bar

6 l/min (3 bar)

70 °C

3-180 s

30 s

2 min pre-set (adjustable with Click 0,5-20 min)

R 1/2 AG

220x250x305mm

135 mm

290 mm

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be

ordered separately.

220

305

80

210

290

R1/2

40

Power supply

Ausladung

Colour

Article number

Battery

290 mm

brushed stainless steel

CONE3518178120

Main

power supply

290 mm

brushed stainless steel

CONE3518178220
