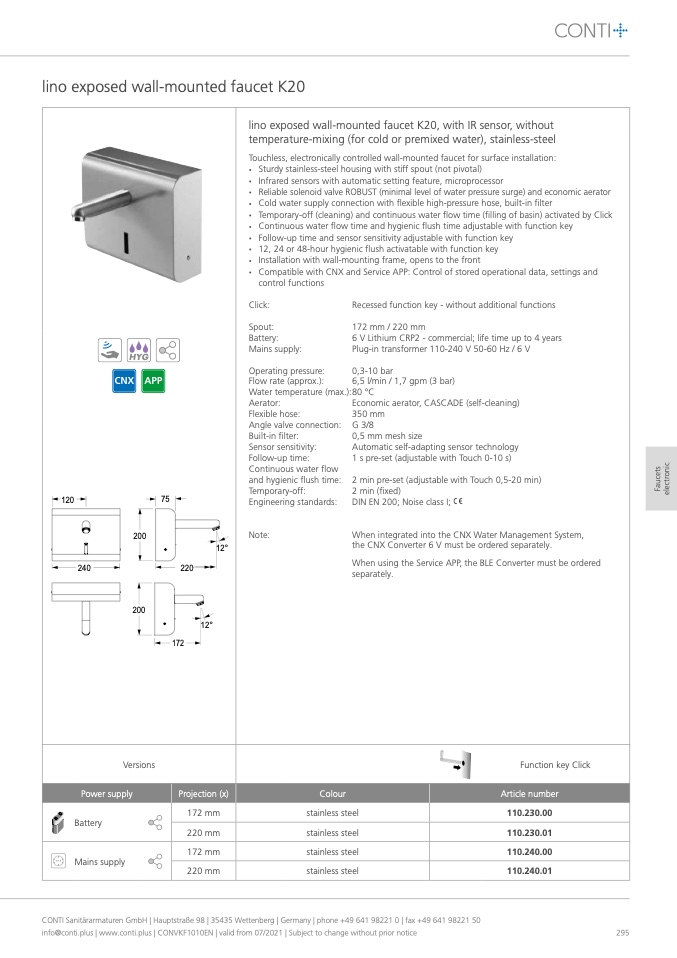

lino exposed wall-mounted faucet K20

lino exposed wall-mounted faucet K20, with IR sensor, without

temperature-mixing (for cold or premixed water), stainless-steel

Touchless, electronically controlled wall-mounted faucet for surface installation:

•

Sturdy stainless-steel housing with stiff spout (not pivotal)

•

Infrared sensors with automatic setting feature, microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Cold water supply connection with flexible high-pressure hose, built-in filter

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click

•

Continuous water flow time and hygienic flush time adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with function key

•

Installation with wall-mounting frame, opens to the front

•

Compatible with CNX and Service APP: Control of stored operational data, settings and

control functions

Click:

Spout:

Battery:

Mains supply:

Recessed function key - without additional functions

172 mm / 220 mm

6 V Lithium CRP2 - commercial; life time up to 4 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

Operating pressure:

Flow rate (approx.):

Water temperature (max.):80 °C

Aerator:

Flexible hose:

Angle valve connection:

Built-in filter:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Note:

Economic aerator, CASCADE (self-cleaning)

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with Touch 0-10 s)

2 min pre-set (adjustable with Touch 0,5-20 min)

2 min (fixed)

DIN EN 200; Noise class I;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

0,3-10 bar

6,5 l/min / 1,7 gpm (3 bar)

120

240

200

200

75

220

12°

172

12°

Versions

Function key Click

Power supply

Projection (x)

Colour

Article number

172 mm

stainless steel

110.230.00

Battery

220 mm

stainless steel

172 mm

stainless steel

110.230.01

110.240.00

Mains supply

220 mm

stainless steel

110.240.01

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
