220

80

13

85

*Example with spout

in stainless steel V4A

185

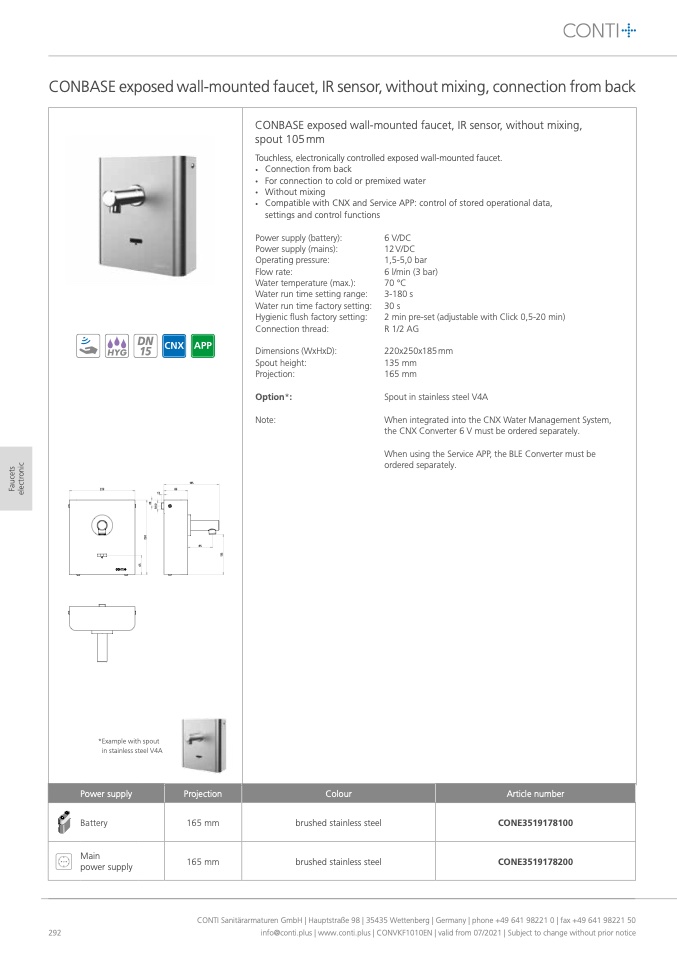

CONBASE exposed wall-mounted faucet, IR sensor, without mixing,

spout 105mm

Touchless, electronically controlled exposed wall-mounted faucet.

•

Connection from back

•

For connection to cold or premixed water

•

Without mixing

•

Compatible with CNX and Service APP: control of stored operational data,

settings and control functions

Power supply (battery):

Power supply (mains):

Operating pressure:

Flow rate:

Water temperature (max.):

Water run time setting range:

Water run time factory setting:

Hygienic flush factory setting:

Connection thread:

Dimensions (WxHxD):

Spout height:

Projection:

Option*:

Note:

6 V/DC

12V/DC

1,5-5,0 bar

6 l/min (3 bar)

70 °C

3-180 s

30 s

2 min pre-set (adjustable with Click 0,5-20 min)

R 1/2 AG

220x250x185mm

135 mm

165 mm

Spout in stainless steel V4A

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be

ordered separately.

Power supply

Projection

Colour

Article number

Battery

165 mm

brushed stainless steel

CONE3519178100

Main

power supply

165 mm

brushed stainless steel

CONE3519178200

CONBASE exposed wall-mounted faucet, IR sensor, without mixing, connection from back

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

292

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
