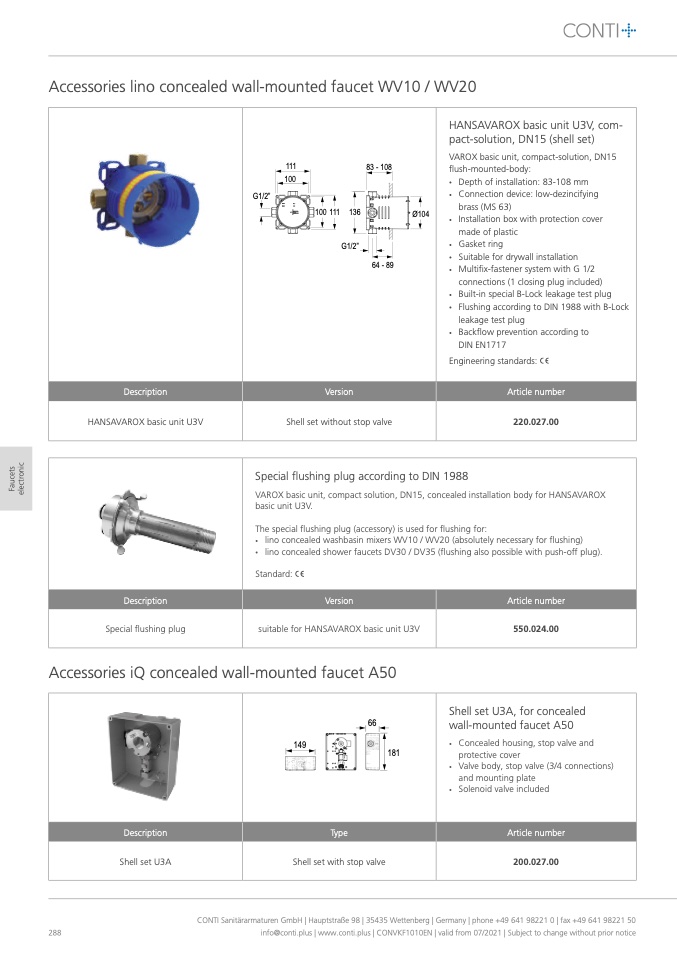

Accessories lino concealed wall-mounted faucet WV10 / WV20
Description
HANSAVAROX basic unit U3V
Version
Article number
Shell set without stop valve
220.027.00
G1/2”
111
100
83 - 108
136
HANSAVAROX basic unit U3V, com-
pact-solution, DN15 (shell set)
VAROX basic unit, compact-solution, DN15
flush-mounted-body:
•
Depth of installation: 83-108 mm
•
Connection device: low-dezincifying
brass (MS 63)
•
Installation box with protection cover
made of plastic
•
Gasket ring
•
Suitable for drywall installation
•
Multifix-fastener system with G 1/2
connections (1 closing plug included)
•
Built-in special B-Lock leakage test plug
•
Flushing according to DIN 1988 with B-Lock
leakage test plug
•
Backflow prevention according to
DIN EN1717
Engineering standards:
100 111
Ø104
G1/2”
64 - 89
F
a
u
c
e
t
s
e
l
e
c
t
r
o
n
i
c
Description
Special flushing plug
Version
Article number
550.024.00
Shell set U3A, for concealed
wall-mounted faucet A50
Accessories iQ concealed wall-mounted faucet A50
288
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50
info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
Description
Shell set U3A
Type
Special flushing plug according to DIN 1988
VAROX basic unit, compact solution, DN15, concealed installation body for HANSAVAROX
basic unit U3V.
The special flushing plug (accessory) is used for flushing for:
•
lino concealed washbasin mixers WV10 / WV20 (absolutely necessary for flushing)
•
lino concealed shower faucets DV30 / DV35 (flushing also possible with push-off plug).
Standard:
suitable for HANSAVAROX basic unit U3V
149
66
181
•
•
•
Concealed housing, stop valve and
protective cover
Valve body, stop valve (3/4 connections)
and mounting plate
Solenoid valve included
Article number
200.027.00
Shell set with stop valve
