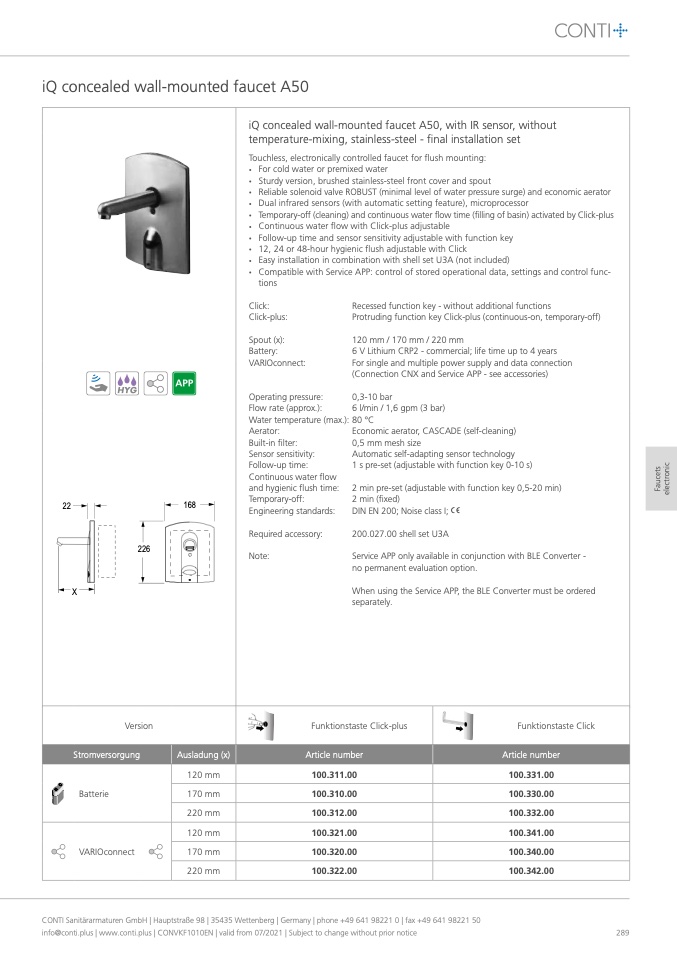

iQ concealed wall-mounted faucet A50
iQ concealed wall-mounted faucet A50, with IR sensor, without
temperature-mixing, stainless-steel - final installation set
Touchless, electronically controlled faucet for flush mounting:
•
For cold water or premixed water
•
Sturdy version, brushed stainless-steel front cover and spout
•
Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator
•
Dual infrared sensors (with automatic setting feature), microprocessor
•
Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus
•
Continuous water flow with Click-plus adjustable
•
Follow-up time and sensor sensitivity adjustable with function key
•
12, 24 or 48-hour hygienic flush adjustable with Click
•
Easy installation in combination with shell set U3A (not included)
•
Compatible with Service APP: control of stored operational data, settings and control func-
tions
Click:
Click-plus:
Spout (x):
Battery:
VARIOconnect:
Operating pressure:
Flow rate (approx.):
Water temperature (max.):
Aerator:
Built-in filter:
Sensor sensitivity:
Follow-up time:
Continuous water flow
and hygienic flush time:
Temporary-off:
Engineering standards:
Required accessory:
Note:
Recessed function key - without additional functions
Protruding function key Click-plus (continuous-on, temporary-off)
120mm/170mm/220mm
6 V Lithium CRP2 - commercial; life time up to 4 years
For single and multiple power supply and data connection
(Connection CNX and Service APP - see accessories)
0,3-10 bar
6 l/min / 1,6 gpm (3 bar)
80 °C
Economic aerator, CASCADE (self-cleaning)
0,5 mm mesh size
Automatic self-adapting sensor technology
1 s pre-set (adjustable with function key 0-10 s)
2 min pre-set (adjustable with function key 0,5-20 min)
2 min (fixed)
DIN EN 200; Noise class I;
200.027.00 shell set U3A
Service APP only available in conjunction with BLE Converter -
no permanent evaluation option.
When using the Service APP, the BLE Converter must be ordered
separately.
22
168
226
X
Version
Funktionstaste Click-plus
Funktionstaste Click
Stromversorgung
Ausladung (x)
Article number
Article number
120 mm
100.311.00
100.331.00
Batterie
170 mm
100.310.00
100.330.00
220 mm
100.312.00
100.332.00
120 mm
100.321.00
100.341.00
170 mm
100.320.00
100.340.00
220 mm
100.322.00
100.342.00
VARIOconnect
