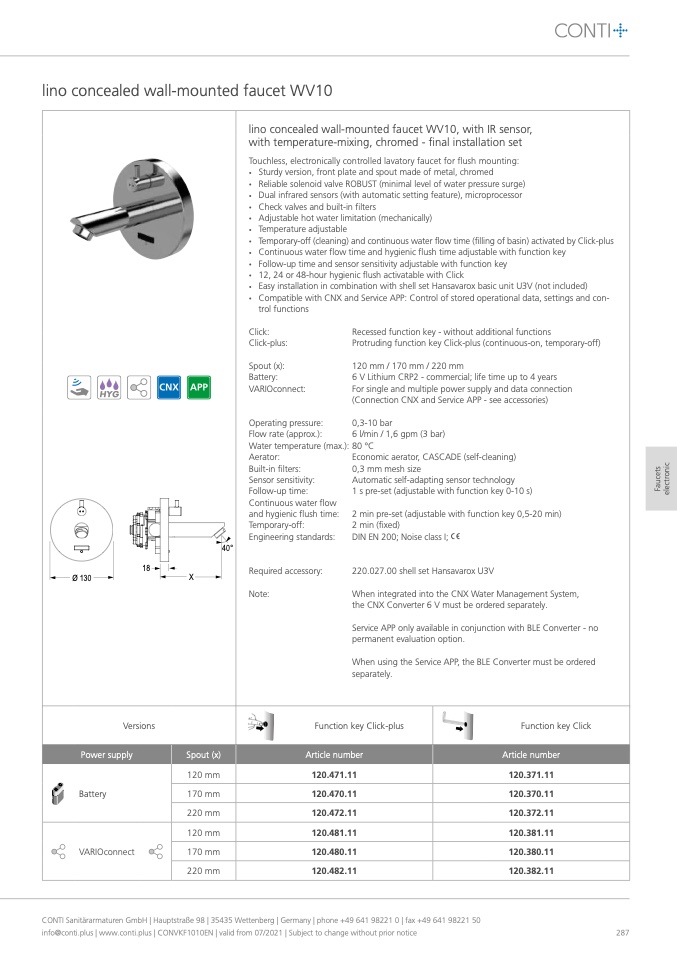

lino concealed wall-mounted faucet WV10
40°
18
Ø 130
X
Versions
Power supply
Battery
VARIOconnect
lino concealed wall-mounted faucet WV10, with IR sensor,
with temperature-mixing, chromed - final installation set
Touchless, electronically controlled lavatory faucet for flush mounting:
•
Sturdy version, front plate and spout made of metal, chromed
•
Reliable solenoid valve ROBUST (minimal level of water pressure surge)
•
Dual infrared sensors (with automatic setting feature), microprocessor
•
Check valves and built-in filters
•
Adjustable hot water limitation (mechanically)
•
Temperature adjustable
•
Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus
•
Continuous water flow time and hygienic flush time adjustable with function key
•
Follow-up time and sensor sensitivity adjustable with function key
•
12, 24 or 48-hour hygienic flush activatable with Click
•
Easy installation in combination with shell set Hansavarox basic unit U3V (not included)
•
Compatible with CNX and Service APP: Control of stored operational data, settings and con-
trol functions
Click:
Click-plus:
Spout (x):
Battery:
VARIOconnect:
Operating pressure:
Flow rate (approx.):
Water temperature (max.):
Aerator:
Built-in filters:
Sensor sensitivity:
Follow-up time:
Continuous water flow
and hygienic flush time:
Temporary-off:
Engineering standards:
Required accessory:
Note:
Recessed function key - without additional functions
Protruding function key Click-plus (continuous-on, temporary-off)
120mm/170mm/220mm
6 V Lithium CRP2 - commercial; life time up to 4 years
For single and multiple power supply and data connection
(Connection CNX and Service APP - see accessories)
0,3-10 bar
6 l/min / 1,6 gpm (3 bar)
80 °C
Economic aerator, CASCADE (self-cleaning)
0,3 mm mesh size
Automatic self-adapting sensor technology
1 s pre-set (adjustable with function key 0-10 s)
2 min pre-set (adjustable with function key 0,5-20 min)
2 min (fixed)
DIN EN 200; Noise class I;
220.027.00 shell set Hansavarox U3V
When integrated into the CNX Water Management System,
the CNX Converter 6 V must be ordered separately.
Service APP only available in conjunction with BLE Converter - no
permanent evaluation option.
When using the Service APP, the BLE Converter must be ordered
separately.
Function key Click-plus
Function key Click
Spout (x)
Article number
Article number
120 mm
120.471.11
120.371.11
170 mm
120.470.11
120.370.11
220 mm
120.472.11
120.372.11
120 mm
120.481.11
120.381.11
170 mm
120.480.11
120.380.11
220 mm
120.482.11
120.382.11
