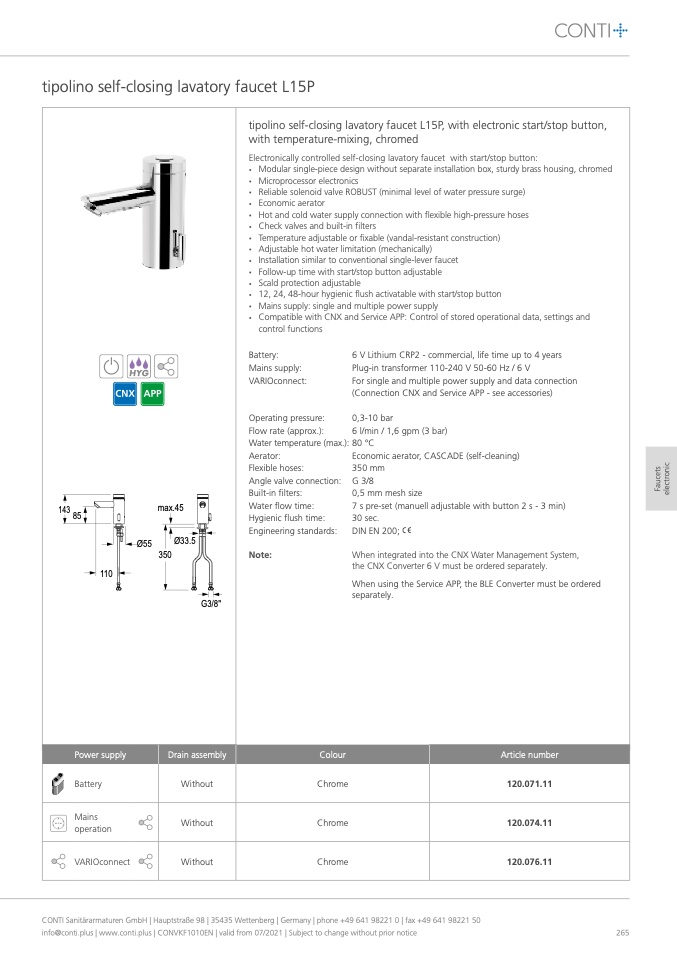

tipolino self-closing lavatory faucet L15P

tipolino self-closing lavatory faucet L15P, with electronic start/stop button,

with temperature-mixing, chromed

Electronically controlled self-closing lavatory faucet with start/stop button:

•

Modular single-piece design without separate installation box, sturdy brass housing, chromed

•

Microprocessor electronics

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge)

•

Economic aerator

•

Hot and cold water supply connection with flexible high-pressure hoses

•

Check valves and built-in filters

•

Temperature adjustable or fixable (vandal-resistant construction)

•

Adjustable hot water limitation (mechanically)

•

Installation similar to conventional single-lever faucet

•

Follow-up time with start/stop button adjustable

•

Scald protection adjustable

•

12, 24, 48-hour hygienic flush activatable with start/stop button

•

Mains supply: single and multiple power supply

•

Compatible with CNX and Service APP: Control of stored operational data, settings and

control functions

Battery:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hoses:

Angle valve connection:

Built-in filters:

Water flow time:

Hygienic flush time:

Engineering standards:

Note:

6 V Lithium CRP2 - commercial, life time up to 4 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

6 l/min / 1,6 gpm (3 bar)

80 °C

Economic aerator, CASCADE (self-cleaning)

350 mm

G 3/8

0,5 mm mesh size

7 s pre-set (manuell adjustable with button 2 s - 3 min)

30 sec.

DIN EN 200;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

143

85

max.45

Ø33.5

350

G3/8"

Ø55

110

Power supply

Drain assembly

Colour

Article number

Battery

Without

Chrome

120.071.11

Mains

operation

Without

Chrome

120.074.11

Without

Chrome

120.076.11

VARIOconnect
