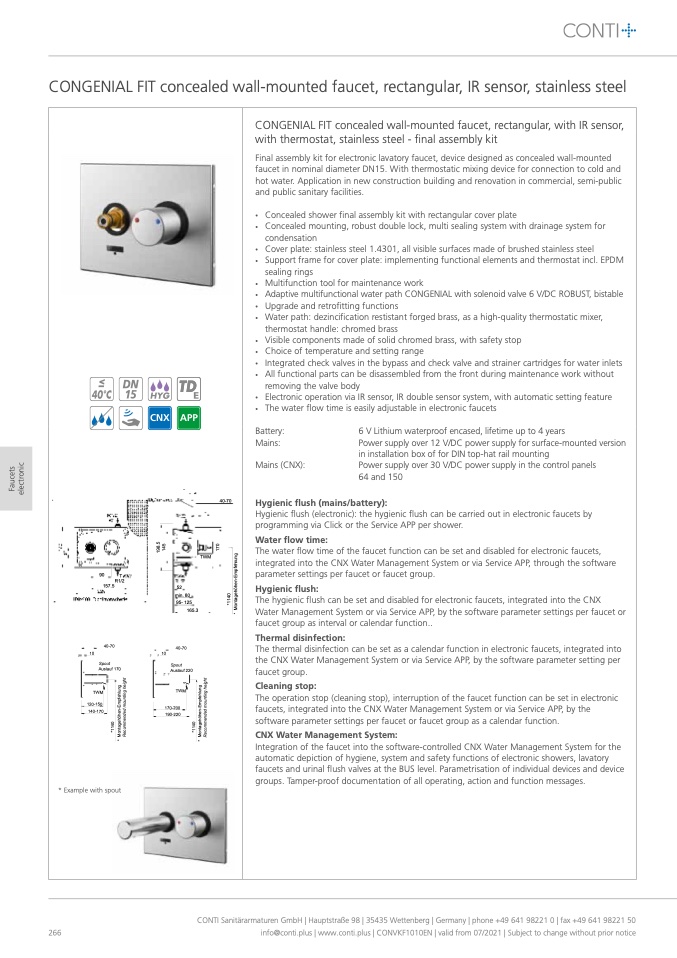

CONGENIAL FIT concealed wall-mounted faucet, rectangular, with IR sensor,
with thermostat, stainless steel - final assembly kit
Final assembly kit for electronic lavatory faucet, device designed as concealed wall-mounted
faucet in nominal diameter DN15. With thermostatic mixing device for connection to cold and
hot water. Application in new construction building and renovation in commercial, semi-public
and public sanitary facilities.
•
Concealed shower final assembly kit with rectangular cover plate
•
Concealed mounting, robust double lock, multi sealing system with drainage system for
condensation
•
Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
•
Support frame for cover plate: implementing functional elements and thermostat incl. EPDM
sealing rings
•
Multifunction tool for maintenance work
•
Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
•
Upgrade and retrofitting functions
•
Water path: dezincification restistant forged brass, as a high-quality thermostatic mixer,
thermostat handle: chromed brass
•
Visible components made of solid chromed brass, with safety stop
•
Choice of temperature and setting range
•
Integrated check valves in the bypass and check valve and strainer cartridges for water inlets
•
All functional parts can be disassembled from the front during maintenance work without
removing the valve body
•
Electronic operation via IR sensor, IR double sensor system, with automatic setting feature
•
The water flow time is easily adjustable in electronic faucets
Battery:
Mains:
Mains (CNX):
6 V Lithium waterproof encased, lifetime up to 4 years
Power supply over 12 V/DC power supply for surface-mounted version
in installation box of for DIN top-hat rail mounting
Power supply over 30 V/DC power supply in the control panels
64 and 150
Hygienic flush (mains/battery):
Hygienic flush (electronic): the hygienic flush can be carried out in electronic faucets by
programming via Click or the Service APP per shower.
Water flow time:
The water flow time of the faucet function can be set and disabled for electronic faucets,
integrated into the CNX Water Management System or via Service APP, through the software
parameter settings per faucet or faucet group.
Hygienic flush:
The hygienic flush can be set and disabled for electronic faucets, integrated into the CNX
Water Management System or via Service APP, by the software parameter settings per faucet or
faucet group as interval or calendar function..
Thermal disinfection:
The thermal disinfection can be set as a calendar function in electronic faucets, integrated into
the CNX Water Management System or via Service APP, by the software parameter setting per
faucet group.
Cleaning stop:
The operation stop (cleaning stop), interruption of the faucet function can be set in electronic
faucets, integrated into the CNX Water Management System or via Service APP, by the
software parameter settings per faucet or faucet group as a calendar function.
CNX Water Management System:
Integration of the faucet into the software-controlled CNX Water Management System for the
automatic depiction of hygiene, system and safety functions of electronic showers, lavatory
faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and device
groups. Tamper-proof documentation of all operating, action and function messages.
CONGENIAL FIT concealed wall-mounted faucet, rectangular, IR sensor, stainless steel
