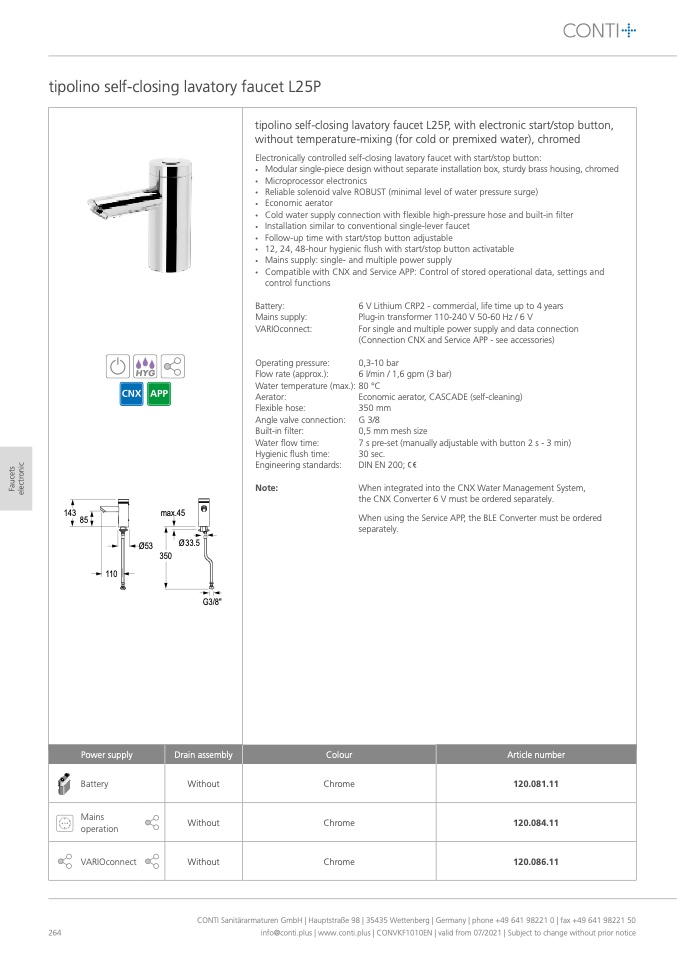

tipolino self-closing lavatory faucet L25P, with electronic start/stop button,

without temperature-mixing (for cold or premixed water), chromed

Electronically controlled self-closing lavatory faucet with start/stop button:

•

Modular single-piece design without separate installation box, sturdy brass housing, chromed

•

Microprocessor electronics

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge)

•

Economic aerator

•

Cold water supply connection with flexible high-pressure hose and built-in filter

•

Installation similar to conventional single-lever faucet

•

Follow-up time with start/stop button adjustable

•

12, 24, 48-hour hygienic flush with start/stop button activatable

•

Mains supply: single- and multiple power supply

•

Compatible with CNX and Service APP: Control of stored operational data, settings and

control functions

Battery:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hose:

Angle valve connection:

Built-in filter:

Water flow time:

Hygienic flush time:

Engineering standards:

Note:

6 V Lithium CRP2 - commercial, life time up to 4 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

6 l/min / 1,6 gpm (3 bar)

80 °C

Economic aerator, CASCADE (self-cleaning)

350 mm

G 3/8

0,5 mm mesh size

7 s pre-set (manually adjustable with button 2 s - 3 min)

30 sec.

DIN EN 200;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

143

85

max.45

Ø 33.5

350

G3/8"

Ø53

110

Power supply

Drain assembly

Colour

Article number

Battery

Without

Chrome

120.081.11

Mains

operation

Without

Chrome

120.084.11

Without

Chrome

120.086.11

tipolino self-closing lavatory faucet L25P

VARIOconnect

264

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
