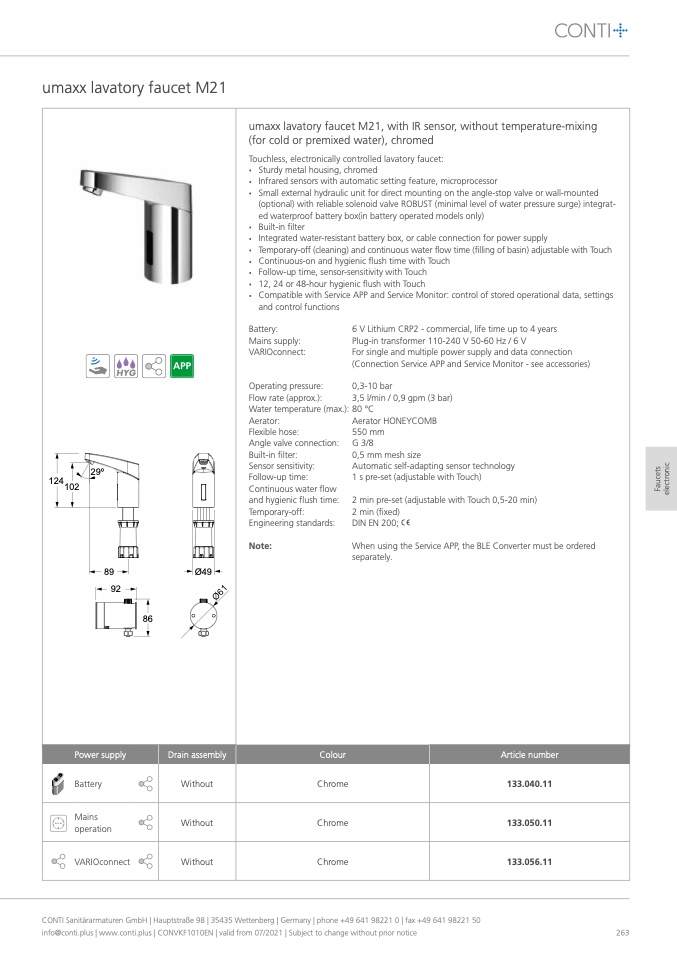

umaxx lavatory faucet M21

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

29o

124

and control functions

Battery:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hose:

Angle valve connection:

Built-in filter:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Note:

6 V Lithium CRP2 - commercial, life time up to 4 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

For single and multiple power supply and data connection

(Connection Service APP and Service Monitor - see accessories)

0,3-10 bar

3,5 l/min / 0,9 gpm (3 bar)

80 °C

Aerator HONEYCOMB

550 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with Touch)

2 min pre-set (adjustable with Touch 0,5-20 min)

2 min (fixed)

DIN EN 200;

When using the Service APP, the BLE Converter must be ordered

separately.

102

89

92

Ø49

86

Colour

Battery

Without

Chrome

Power supply

Drain assembly

Article number

133.040.11

133.050.11

133.056.11

Mains

operation

umaxx lavatory faucet M21, with IR sensor, without temperature-mixing

(for cold or premixed water), chromed

Touchless, electronically controlled lavatory faucet:

•

Sturdy metal housing, chromed

•

Infrared sensors with automatic setting feature, microprocessor

•

Small external hydraulic unit for direct mounting on the angle-stop valve or wall-mounted

(optional) with reliable solenoid valve ROBUST (minimal level of water pressure surge) integrat-

ed waterproof battery box(in battery operated models only)

•

Built-in filter

•

Integrated water-resistant battery box, or cable connection for power supply

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) adjustable with Touch

•

Continuous-on and hygienic flush time with Touch

•

Follow-up time, sensor-sensitivity with Touch

•

12, 24 or 48-hour hygienic flush with Touch

•

Compatible with Service APP and Service Monitor: control of stored operational data, settings

Ø61

Without

Chrome

VARIOconnect

Without

Chrome

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

263
