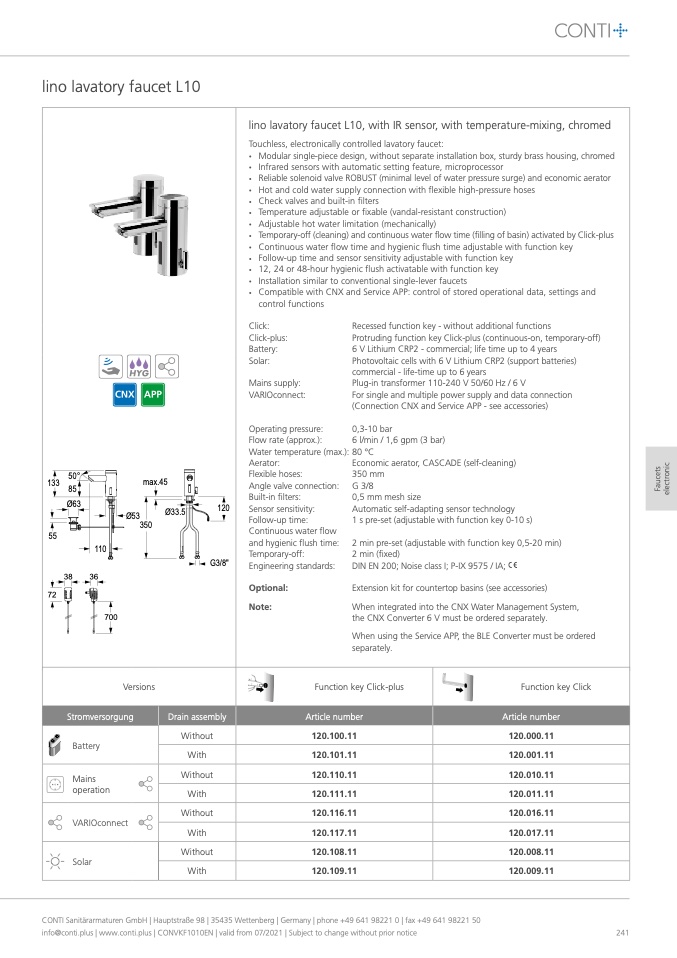

lino lavatory faucet L10

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

50°

133

85

Ø63

55

max.45

Ø33.5

350

120

G3/8"

control functions

Click:

Click-plus:

Battery:

Solar:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hoses:

Angle valve connection:

Built-in filters:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Recessed function key - without additional functions

Protruding function key Click-plus (continuous-on, temporary-off)

6 V Lithium CRP2 - commercial; life time up to 4 years

Photovoltaic cells with 6 V Lithium CRP2 (support batteries)

commercial - life-time up to 6 years

Plug-in transformer 110-240 V 50/60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

6 l/min / 1,6 gpm (3 bar)

80 °C

Economic aerator, CASCADE (self-cleaning)

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with function key 0-10 s)

2 min pre-set (adjustable with function key 0,5-20 min)

2 min (fixed)

DIN EN 200; Noise class I; P-IX 9575 / IA;

Extension kit for countertop basins (see accessories)

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

38

36

72

Stromversorgung

Battery

Mains

operation

VARIOconnect

Solar

Optional:

Note:

Ø53

110

700

Versions

Function key Click-plus

Article number

120.100.11

120.101.11

120.110.11

120.111.11

120.116.11

120.117.11

120.108.11

120.109.11

Function key Click

Article number

120.000.11

120.001.11

120.010.11

120.011.11

120.016.11

120.017.11

120.008.11

120.009.11

Drain assembly

Without

With

Without

With

Without

With

Without

With

lino lavatory faucet L10, with IR sensor, with temperature-mixing, chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design, without separate installation box, sturdy brass housing, chromed

•

Infrared sensors with automatic setting feature, microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Hot and cold water supply connection with flexible high-pressure hoses

•

Check valves and built-in filters

•

Temperature adjustable or fixable (vandal-resistant construction)

•

Adjustable hot water limitation (mechanically)

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus

•

Continuous water flow time and hygienic flush time adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with function key

•

Installation similar to conventional single-lever faucets

•

Compatible with CNX and Service APP: control of stored operational data, settings and

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
