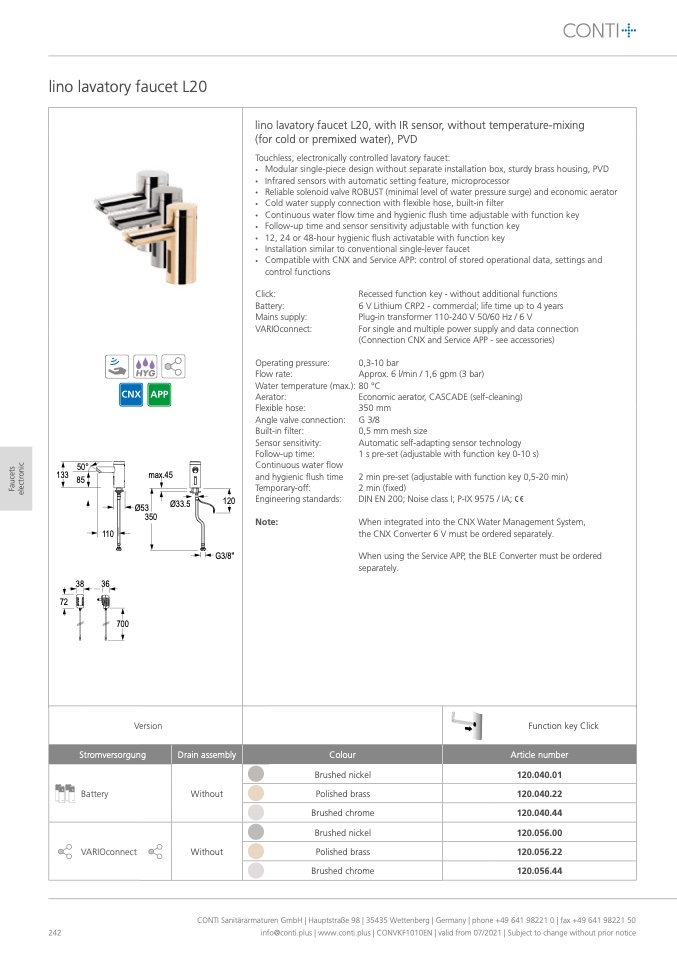

lino lavatory faucet L20

242

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

50°

133

85

max.45

control functions

Click:

Battery:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate:

Water temperature (max.):

Aerator:

Flexible hose:

Angle valve connection:

Built-in filter:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time

Temporary-off:

Engineering standards:

Recessed function key - without additional functions

6 V Lithium CRP2 - commercial; life time up to 4 years

Plug-in transformer 110-240 V 50/60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

Approx. 6 l/min / 1,6 gpm (3 bar)

80 °C

Economic aerator, CASCADE (self-cleaning)

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with function key 0-10 s)

2 min pre-set (adjustable with function key 0,5-20 min)

2 min (fixed)

DIN EN 200; Noise class I; P-IX 9575 / IA;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

38

36

72

110

700

Version

Stromversorgung

Battery

VARIOconnect

Drain assembly

Without

Without

Colour

Brushed nickel

Polished brass

Brushed chrome

Brushed nickel

Polished brass

Brushed chrome

Function key Click

Article number

120.040.01

120.040.22

120.040.44

120.056.00

120.056.22

120.056.44

Ø53

Ø33.5

350

120

G3/8"

lino lavatory faucet L20, with IR sensor, without temperature-mixing

(for cold or premixed water), PVD

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy brass housing, PVD

•

Infrared sensors with automatic setting feature, microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Cold water supply connection with flexible hose, built-in filter

•

Continuous water flow time and hygienic flush time adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with function key

•

Installation similar to conventional single-lever faucet

•

Compatible with CNX and Service APP: control of stored operational data, settings and

Note:
