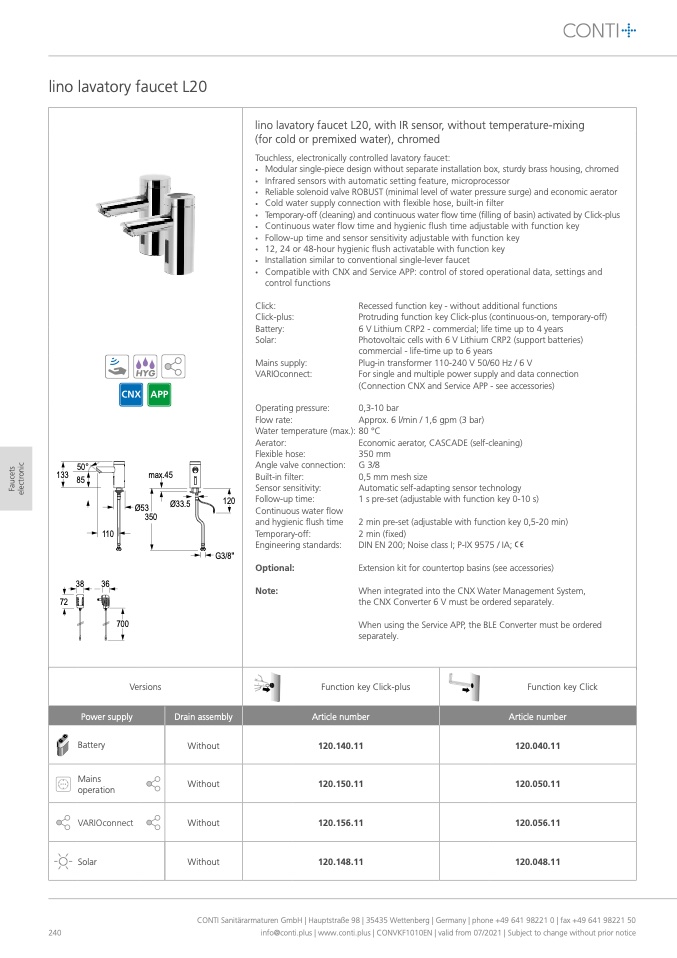

lino lavatory faucet L20

240

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

50°

133

85

max.45

control functions

Click:

Click-plus:

Battery:

Solar:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate:

Water temperature (max.):

Aerator:

Flexible hose:

Angle valve connection:

Built-in filter:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time

Temporary-off:

Engineering standards:

Recessed function key - without additional functions

Protruding function key Click-plus (continuous-on, temporary-off)

6 V Lithium CRP2 - commercial; life time up to 4 years

Photovoltaic cells with 6 V Lithium CRP2 (support batteries)

commercial - life-time up to 6 years

Plug-in transformer 110-240 V 50/60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

Approx. 6 l/min / 1,6 gpm (3 bar)

80 °C

Economic aerator, CASCADE (self-cleaning)

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with function key 0-10 s)

2 min pre-set (adjustable with function key 0,5-20 min)

2 min (fixed)

DIN EN 200; Noise class I; P-IX 9575 / IA;

Extension kit for countertop basins (see accessories)

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

72

110

38

36

Power supply

Battery

Mains

operation

VARIOconnect

Solar

Optional:

Note:

Ø53

700

Versions

Function key Click-plus

Article number

120.140.11

120.150.11

120.156.11

120.148.11

Function key Click

Article number

120.040.11

120.050.11

120.056.11

120.048.11

Ø33.5

350

120

G3/8"

Drain assembly

Without

Without

Without

Without

lino lavatory faucet L20, with IR sensor, without temperature-mixing

(for cold or premixed water), chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy brass housing, chromed

•

Infrared sensors with automatic setting feature, microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Cold water supply connection with flexible hose, built-in filter

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus

•

Continuous water flow time and hygienic flush time adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with function key

•

Installation similar to conventional single-lever faucet

•

Compatible with CNX and Service APP: control of stored operational data, settings and
