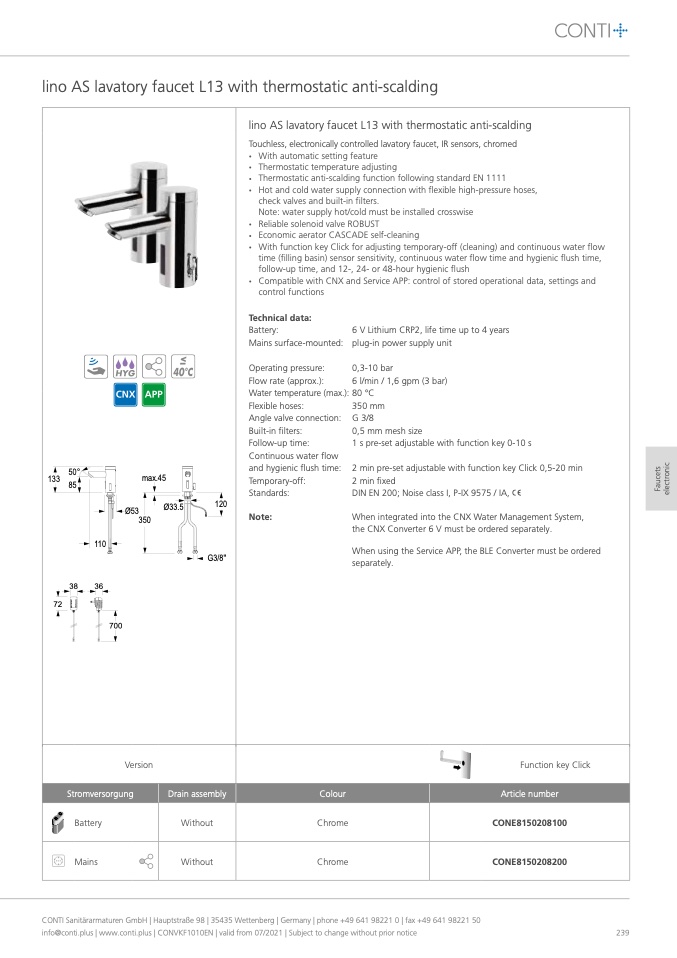

lino AS lavatory faucet L13 with thermostatic anti-scalding
F
a
u
c
e
t
s
e
l
e
c
t
r
o
n
i
c
50°
133
85
max.45
Ø33.5
350
control functions
Technical data:
Battery:
Mains surface-mounted:
Operating pressure:
Flow rate (approx.):
Water temperature (max.):
Flexible hoses:
Angle valve connection:
Built-in filters:
Follow-up time:
Continuous water flow
and hygienic flush time:
Temporary-off:
Standards:
Note:
6 V Lithium CRP2, life time up to 4 years
plug-in power supply unit
0,3-10 bar
6 l/min / 1,6 gpm (3 bar)
80 °C
350 mm
G 3/8
0,5 mm mesh size
1 s pre-set adjustable with function key 0-10 s
2 min pre-set adjustable with function key Click 0,5-20 min
2 min fixed
DIN EN 200; Noise class I, P-IX 9575 / IA,
When integrated into the CNX Water Management System,
the CNX Converter 6 V must be ordered separately.
When using the Service APP, the BLE Converter must be ordered
separately.
38
36
72
700
Ø53
110
120
G3/8"
Version
Function key Click
Article number
CONE8150208100
CONE8150208200
lino AS lavatory faucet L13 with thermostatic anti-scalding
Touchless, electronically controlled lavatory faucet, IR sensors, chromed
•
With automatic setting feature
•
Thermostatic temperature adjusting
•
Thermostatic anti-scalding function following standard EN 1111
•
Hot and cold water supply connection with flexible high-pressure hoses,
check valves and built-in filters.
Note: water supply hot/cold must be installed crosswise
•
Reliable solenoid valve ROBUST
•
Economic aerator CASCADE self-cleaning
•
With function key Click for adjusting temporary-off (cleaning) and continuous water flow
time (filling basin) sensor sensitivity, continuous water flow time and hygienic flush time,
follow-up time, and 12-, 24- or 48-hour hygienic flush
•
Compatible with CNX and Service APP: control of stored operational data, settings and
Colour
Battery
Without
Chrome
Mains
Without
Chrome
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50
info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
Stromversorgung
Drain assembly
239
