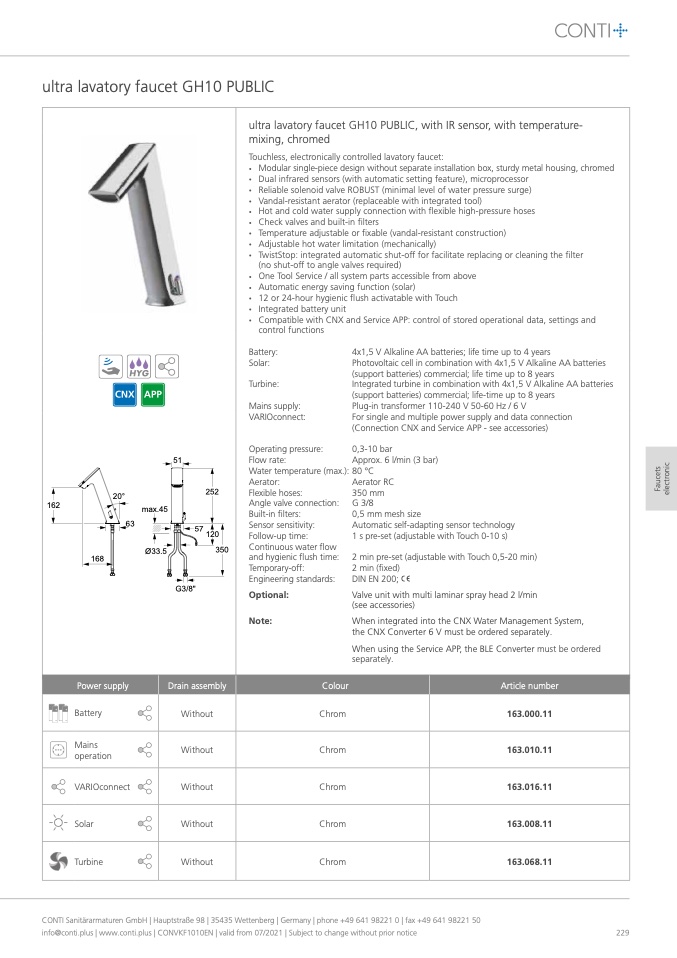

ultra lavatory faucet GH10 PUBLIC

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

162

20°

max.45

252

120

350

168

Power supply

Battery

Mains

operation

VARIOconnect

Solar

Turbine

Drain assembly

Without

Without

Without

Without

Without

Colour

Chrom

Chrom

Chrom

Chrom

Chrom

Article number

163.000.11

163.010.11

163.016.11

163.008.11

163.068.11

63

57

Ø33.5

51

control functions

Battery:

Solar:

Turbine:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate:

Water temperature (max.):

Aerator:

Flexible hoses:

Angle valve connection:

Built-in filters:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

4x1,5 V Alkaline AA batteries; life time up to 4 years

Photovoltaic cell in combination with 4x1,5 V Alkaline AA batteries

(support batteries) commercial; life time up to 8 years

Integrated turbine in combination with 4x1,5 V Alkaline AA batteries

(support batteries) commercial; life-time up to 8 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

Approx. 6 l/min (3 bar)

80 °C

Aerator RC

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with Touch 0-10 s)

2 min pre-set (adjustable with Touch 0,5-20 min)

2 min (fixed)

DIN EN 200;

Valve unit with multi laminar spray head 2 l/min

(see accessories)

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

G3/8"

Optional:

Note:

ultra lavatory faucet GH10 PUBLIC, with IR sensor, with temperature-

mixing, chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy metal housing, chromed

•

Dual infrared sensors (with automatic setting feature), microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge)

•

Vandal-resistant aerator (replaceable with integrated tool)

•

Hot and cold water supply connection with flexible high-pressure hoses

•

Check valves and built-in filters

•

Temperature adjustable or fixable (vandal-resistant construction)

•

Adjustable hot water limitation (mechanically)

•

TwistStop: integrated automatic shut-off for facilitate replacing or cleaning the filter

(no shut-off to angle valves required)

•

One Tool Service / all system parts accessible from above

•

Automatic energy saving function (solar)

•

12 or 24-hour hygienic flush activatable with Touch

•

Integrated battery unit

•

Compatible with CNX and Service APP: control of stored operational data, settings and

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
