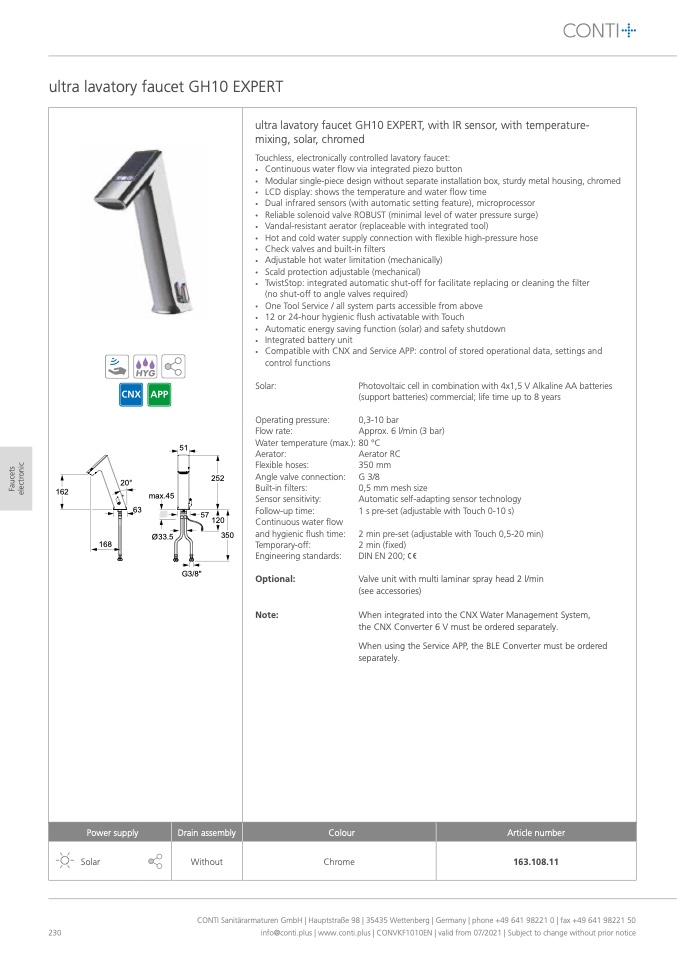

ultra lavatory faucet GH10 EXPERT

230

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

162

20°

max.45

168

63

57

G3/8"

51

Ø33.5

252

120

350

control functions

Solar:

Operating pressure:

Flow rate:

Water temperature (max.):

Aerator:

Flexible hoses:

Angle valve connection:

Built-in filters:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Optional:

Note:

Photovoltaic cell in combination with 4x1,5 V Alkaline AA batteries

(support batteries) commercial; life time up to 8 years

0,3-10 bar

Approx. 6 l/min (3 bar)

80 °C

Aerator RC

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with Touch 0-10 s)

2 min pre-set (adjustable with Touch 0,5-20 min)

2 min (fixed)

DIN EN 200;

Valve unit with multi laminar spray head 2 l/min

(see accessories)

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

Colour

Solar

Without

Chrome

Article number

163.108.11

Power supply

Drain assembly

ultra lavatory faucet GH10 EXPERT, with IR sensor, with temperature-

mixing, solar, chromed

Touchless, electronically controlled lavatory faucet:

•

Continuous water flow via integrated piezo button

•

Modular single-piece design without separate installation box, sturdy metal housing, chromed

•

LCD display: shows the temperature and water flow time

•

Dual infrared sensors (with automatic setting feature), microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge)

•

Vandal-resistant aerator (replaceable with integrated tool)

•

Hot and cold water supply connection with flexible high-pressure hose

•

Check valves and built-in filters

•

Adjustable hot water limitation (mechanically)

•

Scald protection adjustable (mechanical)

•

TwistStop: integrated automatic shut-off for facilitate replacing or cleaning the filter

(no shut-off to angle valves required)

•

One Tool Service / all system parts accessible from above

•

12 or 24-hour hygienic flush activatable with Touch

•

Automatic energy saving function (solar) and safety shutdown

•

Integrated battery unit

•

Compatible with CNX and Service APP: control of stored operational data, settings and
