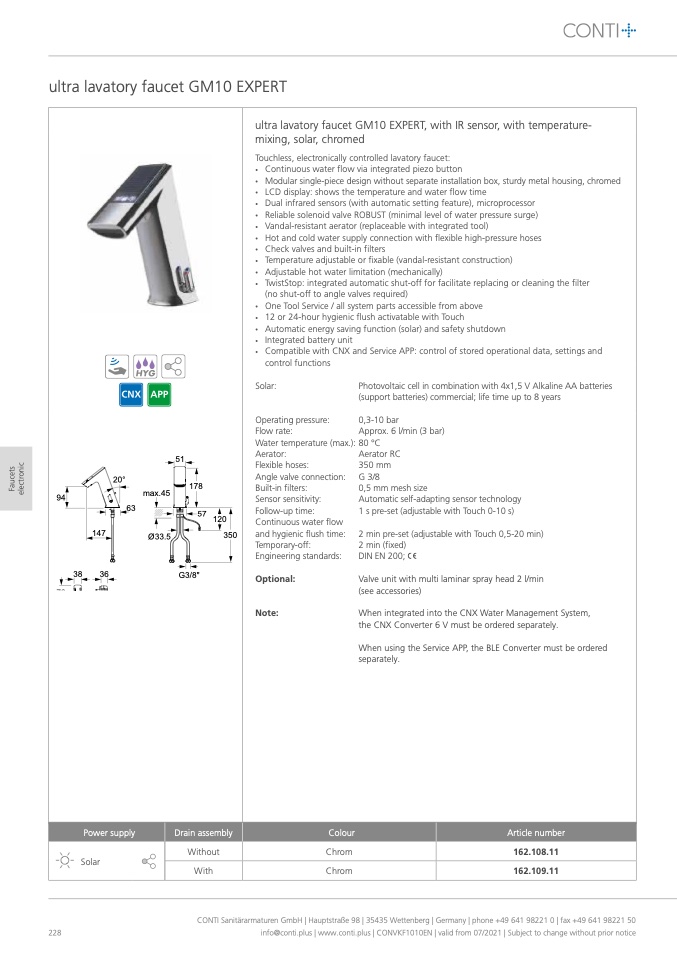

ultra lavatory faucet GM10 EXPERT

228

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

94

72

max.45

63

38

G3/8"

Optional:

Note:

147

36

Ø33.5

120

350

Power supply

Drain assembly

Without

With

Colour

Chrom

Chrom

Article number

162.108.11

162.109.11

Solar

20°

51

178

57

control functions

Solar:

Operating pressure:

Flow rate:

Water temperature (max.):

Aerator:

Flexible hoses:

Angle valve connection:

Built-in filters:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Photovoltaic cell in combination with 4x1,5 V Alkaline AA batteries

(support batteries) commercial; life time up to 8 years

0,3-10 bar

Approx. 6 l/min (3 bar)

80 °C

Aerator RC

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with Touch 0-10 s)

2 min pre-set (adjustable with Touch 0,5-20 min)

2 min (fixed)

DIN EN 200;

Valve unit with multi laminar spray head 2 l/min

(see accessories)

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

ultra lavatory faucet GM10 EXPERT, with IR sensor, with temperature-

mixing, solar, chromed

Touchless, electronically controlled lavatory faucet:

•

Continuous water flow via integrated piezo button

•

Modular single-piece design without separate installation box, sturdy metal housing, chromed

•

LCD display: shows the temperature and water flow time

•

Dual infrared sensors (with automatic setting feature), microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge)

•

Vandal-resistant aerator (replaceable with integrated tool)

•

Hot and cold water supply connection with flexible high-pressure hoses

•

Check valves and built-in filters

•

Temperature adjustable or fixable (vandal-resistant construction)

•

Adjustable hot water limitation (mechanically)

•

TwistStop: integrated automatic shut-off for facilitate replacing or cleaning the filter

(no shut-off to angle valves required)

•

One Tool Service / all system parts accessible from above

•

12 or 24-hour hygienic flush activatable with Touch

•

Automatic energy saving function (solar) and safety shutdown

•

Integrated battery unit

•

Compatible with CNX and Service APP: control of stored operational data, settings and
