41.5

8.5

79.5

G3/8 B

G3/8

83.5

127

Ø38

Ø39

27.5

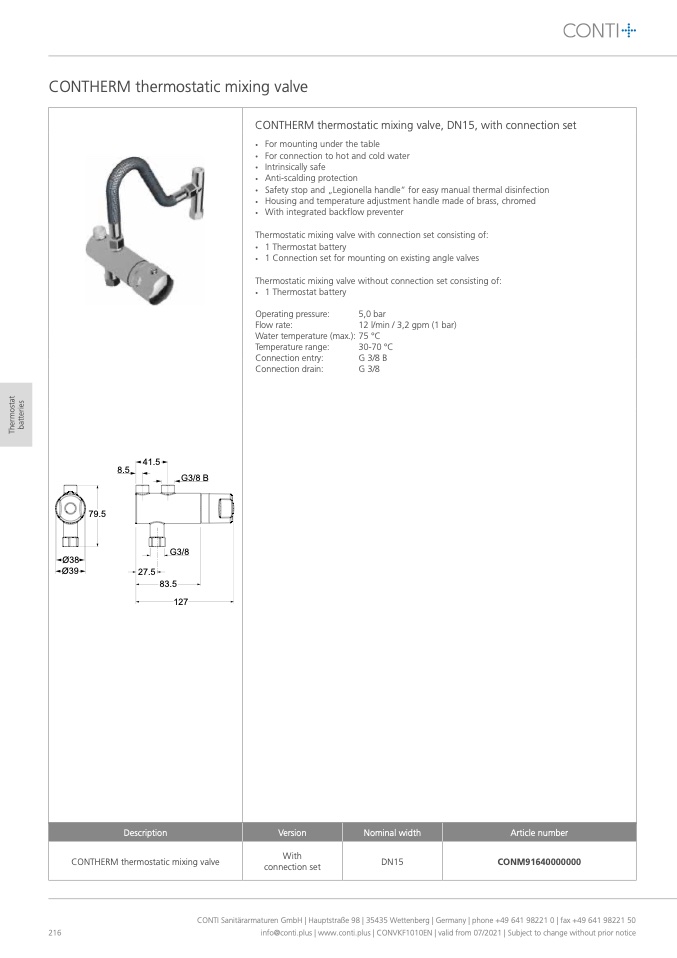

CONTHERM thermostatic mixing valve, DN15, with connection set

•

For mounting under the table

•

For connection to hot and cold water

•

Intrinsically safe

•

Anti-scalding protection

•

Safety stop and „Legionella handle“ for easy manual thermal disinfection

•

Housing and temperature adjustment handle made of brass, chromed

•

With integrated backflow preventer

Thermostatic mixing valve with connection set consisting of:

•

1 Thermostat battery

•

1 Connection set for mounting on existing angle valves

Thermostatic mixing valve without connection set consisting of:

•

1 Thermostat battery

Operating pressure:

Flow rate:

Water temperature (max.):

Temperature range:

Connection entry:

Connection drain:

5,0 bar

12 l/min / 3,2 gpm (1 bar)

75 °C

30-70 °C

G 3/8 B

G 3/8

Description

Version

Nominal width

Article number

CONTHERM thermostatic mixing valve

With

connection set

DN15

CONM91640000000

CONTHERM thermostatic mixing valve
