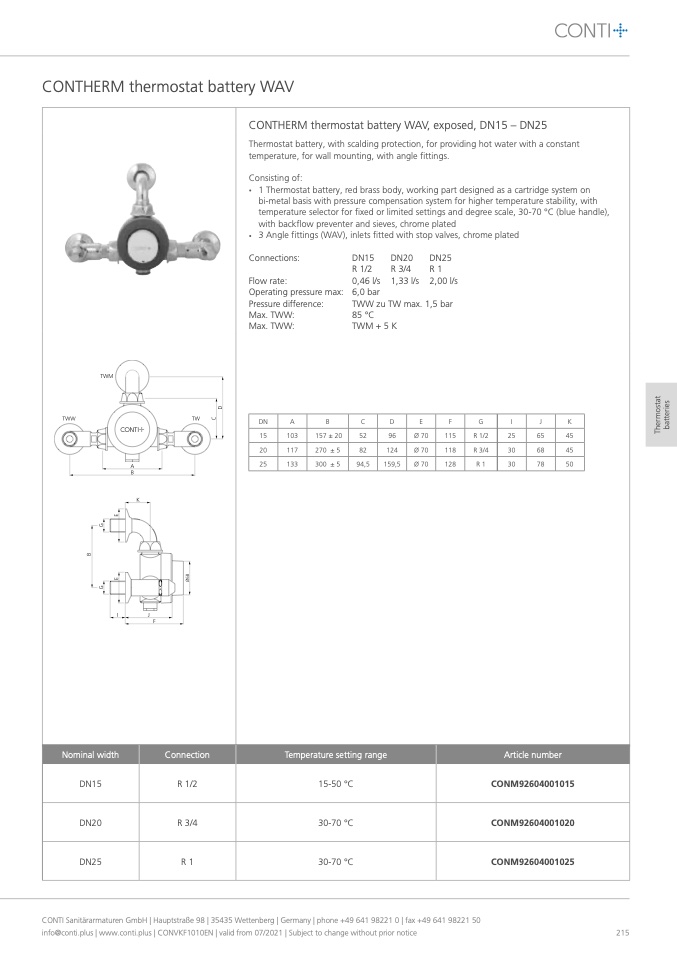

CONTHERM thermostat battery WAV

CONTHERM thermostat battery WAV, exposed, DN15 – DN25

Thermostat battery, with scalding protection, for providing hot water with a constant

temperature, for wall mounting, with angle fittings.

Consisting of:

•

1 Thermostat battery, red brass body, working part designed as a cartridge system on

bi-metal basis with pressure compensation system for higher temperature stability, with

temperature selector for fixed or limited settings and degree scale, 30-70 °C (blue handle),

with backflow preventer and sieves, chrome plated

•

3 Angle fittings (WAV), inlets fitted with stop valves, chrome plated

Connections:

Flow rate:

Operating pressure max:

Pressure difference:

Max. TWW:

Max. TWW:

DN15

R 1/2

0,46 l/s

6,0 bar

TWW zu TW max. 1,5 bar

85 °C

TWM + 5 K

DN20

R 3/4

1,33 l/s

DN25

R 1

2,00 l/s

DN

A

B

C

D

E

F

G

I

J

K

15

103

157 ± 20

52

96

Ø 70

115

R 1/2

25

65

45

20

117

270 ± 5

82

124

Ø 70

118

R 3/4

30

68

45

25

133

300 ± 5

94,5

159,5

Ø 70

128

R1

30

78

50

Nominal width

Connection

Temperature setting range

Article number

DN15

R 1/2

15-50 °C

CONM92604001015

DN20

R 3/4

30-70 °C

CONM92604001020

DN25

R1

30-70 °C

CONM92604001025
