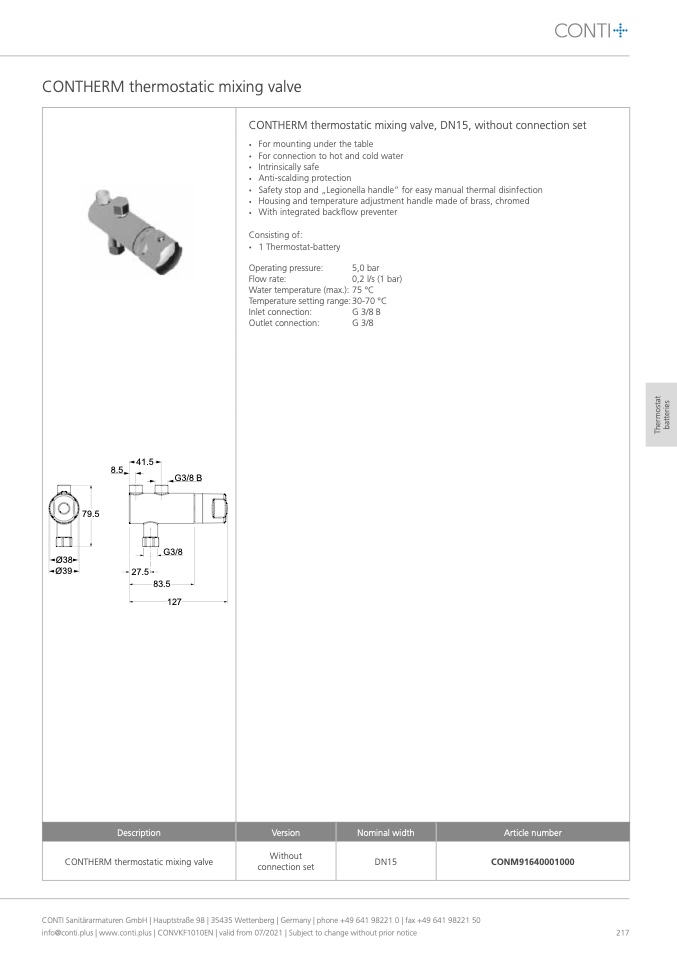

CONTHERM thermostatic mixing valve
41.5
8.5
79.5
G3/8 B
G3/8
83.5
127
Ø38
Ø39
27.5
CONTHERM thermostatic mixing valve, DN15, without connection set
•
For mounting under the table
•
For connection to hot and cold water
•
Intrinsically safe
•
Anti-scalding protection
•
Safety stop and „Legionella handle“ for easy manual thermal disinfection
•
Housing and temperature adjustment handle made of brass, chromed
•
With integrated backflow preventer
Consisting of:
•
1 Thermostat-battery
Operating pressure:
5,0 bar
Flow rate:
0,2 l/s (1 bar)
Water temperature (max.): 75 °C
Temperature setting range:30-70 °C
Inlet connection:
G 3/8 B
Outlet connection:
G 3/8
Description
Version
Nominal width
Article number
CONTHERM thermostatic mixing valve
Without
connection set
DN15
CONM91640001000
