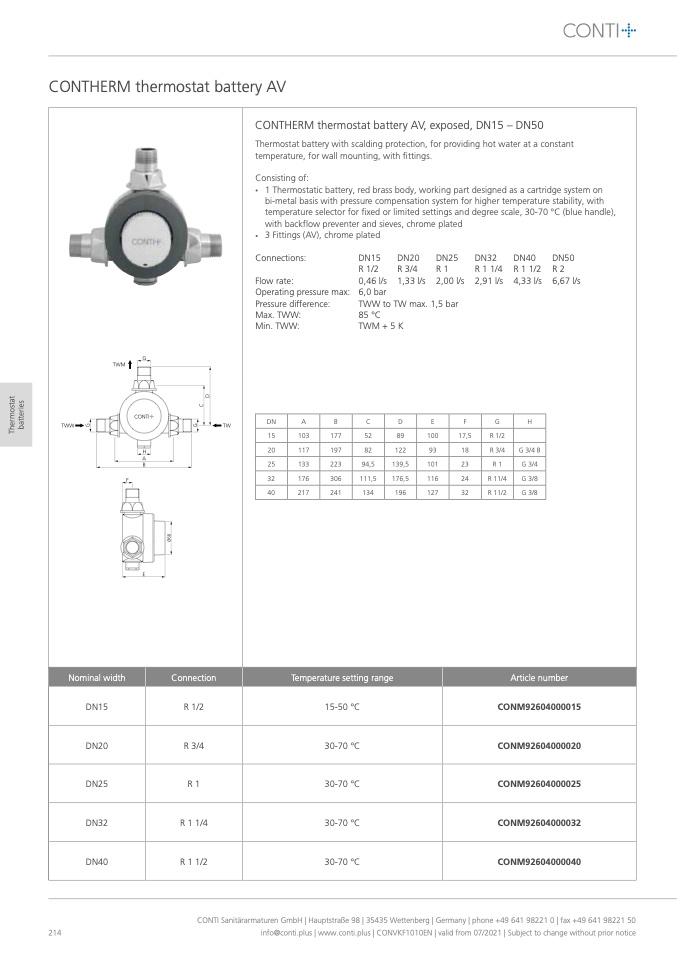

CONTHERM thermostat battery AV, exposed, DN15 – DN50

Thermostat battery with scalding protection, for providing hot water at a constant

temperature, for wall mounting, with fittings.

Consisting of:

•

1 Thermostatic battery, red brass body, working part designed as a cartridge system on

bi-metal basis with pressure compensation system for higher temperature stability, with

temperature selector for fixed or limited settings and degree scale, 30-70 °C (blue handle),

with backflow preventer and sieves, chrome plated

•

3 Fittings (AV), chrome plated

Connections:

Flow rate:

Operating pressure max:

Pressure difference:

Max. TWW:

Min. TWW:

DN15

R 1/2

0,46 l/s

6,0 bar

TWW to TW max. 1,5 bar

85 °C

TWM + 5 K

DN32

R 1 1/4

2,91 l/s

DN40

R 1 1/2

4,33 l/s

DN50

R 2

6,67 l/s

DN20

R 3/4

1,33 l/s

DN25

R 1

2,00 l/s

DN

A

B

C

D

E

F

G

H

15

103

177

52

89

100

17,5

R 1/2

20

117

197

82

122

93

18

R 3/4

G 3/4 B

25

133

223

94,5

139,5

101

23

R1

G 3/4

32

176

306

111,5

176,5

116

24

R 11/4

G 3/8

40

217

241

134

196

127

32

R 11/2

G 3/8

Nominal width

Connection

Temperature setting range

Article number

DN15

R 1/2

15-50 °C

CONM92604000015

DN20

R 3/4

30-70 °C

CONM92604000020

DN25

R1

30-70 °C

CONM92604000025

DN32

R 1 1/4

30-70 °C

CONM92604000032

DN40

R 1 1/2

30-70 °C

CONM92604000040

CONTHERM thermostat battery AV
