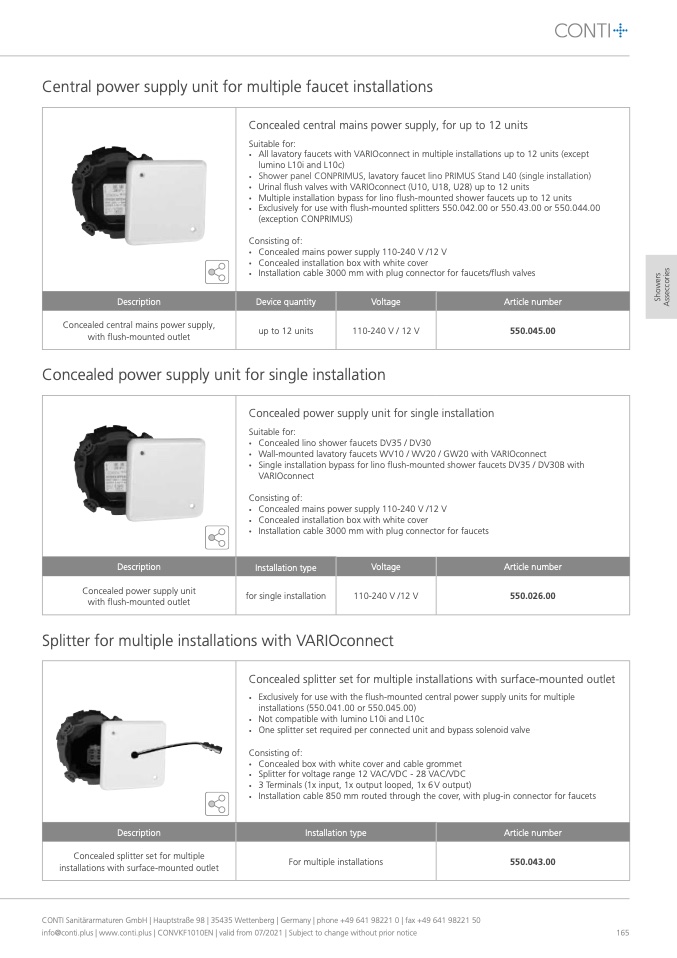

Central power supply unit for multiple faucet installations
Concealed central mains power supply, for up to 12 units
Suitable for:
•
All lavatory faucets with VARIOconnect in multiple installations up to 12 units (except
lumino L10i and L10c)
•
Shower panel CONPRIMUS, lavatory faucet lino PRIMUS Stand L40 (single installation)
•
Urinal flush valves with VARIOconnect (U10, U18, U28) up to 12 units
•
Multiple installation bypass for lino flush-mounted shower faucets up to 12 units
•
Exclusively for use with flush-mounted splitters 550.042.00 or 550.43.00 or 550.044.00
(exception CONPRIMUS)
Consisting of:
•
Concealed mains power supply 110-240 V /12 V
•
Concealed installation box with white cover
•
Installation cable 3000 mm with plug connector for faucets/flush valves
Description
Device quantity
Voltage
Article number
Concealed central mains power supply,
with flush-mounted outlet
up to 12 units
110-240 V / 12 V
550.045.00
Concealed power supply unit for single installation
Concealed power supply unit for single installation
Suitable for:
•
Concealed lino shower faucets DV35 / DV30
•
Wall-mounted lavatory faucets WV10 / WV20 / GW20 with VARIOconnect
•
Single installation bypass for lino flush-mounted shower faucets DV35 / DV30B with
VARIOconnect
Consisting of:
•
Concealed mains power supply 110-240 V /12 V
•
Concealed installation box with white cover
•
Installation cable 3000 mm with plug connector for faucets
Description
Installation type
Voltage
Article number
Concealed power supply unit
with flush-mounted outlet
for single installation
110-240 V /12 V
550.026.00
Splitter for multiple installations with VARIOconnect
Concealed splitter set for multiple installations with surface-mounted outlet
•
Exclusively for use with the flush-mounted central power supply units for multiple
installations (550.041.00 or 550.045.00)
•
Not compatible with lumino L10i and L10c
•
One splitter set required per connected unit and bypass solenoid valve
Consisting of:
•
Concealed box with white cover and cable grommet
•
Splitter for voltage range 12 VAC/VDC - 28 VAC/VDC
•
3 Terminals (1x input, 1x output looped, 1x 6V output)
•
Installation cable 850 mm routed through the cover, with plug-in connector for faucets
Description
Installation type
Article number
Concealed splitter set for multiple
installations with surface-mounted outlet
For multiple installations
550.043.00
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50
info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
