Concealed splitter set with flush-mounted outlet for multiple installations
•
Exclusively for use with the flush-mounted central power supply units for multiple
installations (550.041.00 or 550.045.00) with VARIOconnect
•
Not compatible with lumino L10i and L10c
•
One splitter set is required for each connected unit and bypass solenoid valve
Consisting of:
•
Concealed box with white cover
•
Splitter for voltage range 12 VAC/VDC - 28 VAC/VDC
•
3 Terminals (1x input, 1x output looped, 1x 6 V output)
•
Installation cable 3000 mm with plug-in connector for faucets/flush valves
Description
Installation type
Article number
Concealed splitter set
with flush-mounted outlet
For multiple installations
550.042.00
Concealed splitter for multiple installations
Suitable for:
•
All lavatory faucets (except lumino L10i and L10c), flush-mounted shower faucets and urinal
flush valves U10, U18, U28 with VARIOconnect
•
Exclusively for use with flush-mounted central power supply units for multiple installations
(550.041.00 or 550.045.00)
•
One splitter set required per connected faucet/urinal flush valve and bypass solenoid valve
Consisting of:
•
Splitter for voltage range 12 VAC/VDC - 28 VAC/VDC
•
3 Terminals (60 mm)
Description
Installation type
Article number
Concealed splitter set
for multiple installations
550.044.00
X
Concealed splitter for multiple installations
Suitable for:
•
All lavatory faucets (except lumino L10i and L10c), flush-mounted shower faucets and urinal
flush valves U10, U18, U28 with VARIOconnect
•
Exclusively for use with flush-mounted central power supply units for multiple installations
(550.041.00 or 550.045.00)
•
One splitter set required per connected faucet/urinal flush valve and bypass solenoid valve
Consisting of:
•
Splitter for voltage range 12 VAC/VDC - 28 VAC/VDC
•
3 Terminals (60 mm)
•
Installation cable with length (x) and plug-in connector for faucets
Description
Installation type
Length (x)
Article number
Concealed splitter set
for multiple installation
1200 mm
550.044.12
for multiple installation
3200 mm
550.044.32

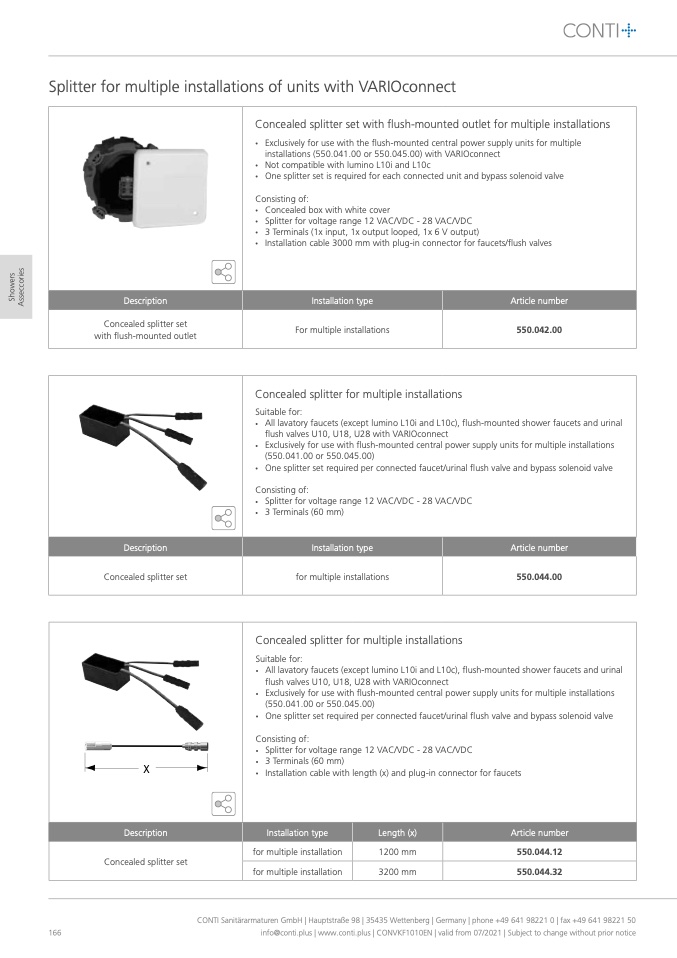

Splitter for multiple installations of units with VARIOconnect
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50
166
info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
