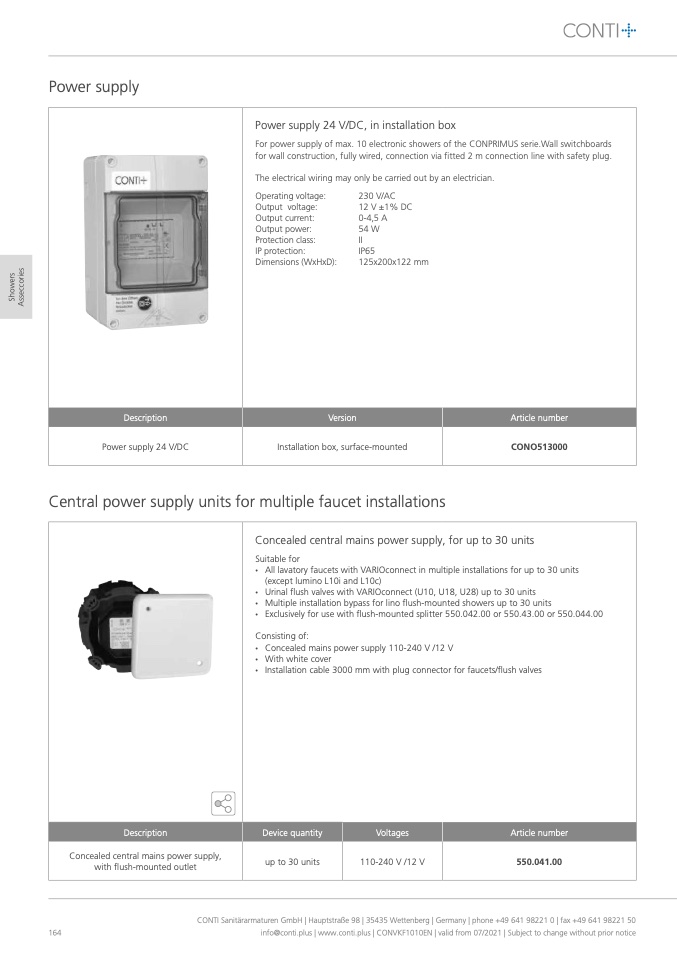

Power supply 24 V/DC, in installation box

For power supply of max. 10 electronic showers of the CONPRIMUS serie.Wall switchboards

for wall construction, fully wired, connection via fitted 2 m connection line with safety plug.

The electrical wiring may only be carried out by an electrician.

Operating voltage:

Output voltage:

Output current:

Output power:

Protection class:

IP protection:

Dimensions (WxHxD):

230 V/AC

12 V ±1% DC

0-4,5 A

54 W

II

IP65

125x200x122 mm

Description

Version

Article number

Power supply 24 V/DC

Installation box, surface-mounted

CONO513000

Concealed central mains power supply, for up to 30 units

Suitable for

•

All lavatory faucets with VARIOconnect in multiple installations for up to 30 units

(except lumino L10i and L10c)

•

Urinal flush valves with VARIOconnect (U10, U18, U28) up to 30 units

•

Multiple installation bypass for lino flush-mounted showers up to 30 units

•

Exclusively for use with flush-mounted splitter 550.042.00 or 550.43.00 or 550.044.00

Consisting of:

•

Concealed mains power supply 110-240 V /12 V

•

With white cover

•

Installation cable 3000 mm with plug connector for faucets/flush valves

Description

Device quantity

Voltages

Article number

Concealed central mains power supply,

with flush-mounted outlet

up to 30 units

110-240 V /12 V

550.041.00

Power supply

Central power supply units for multiple faucet installations
