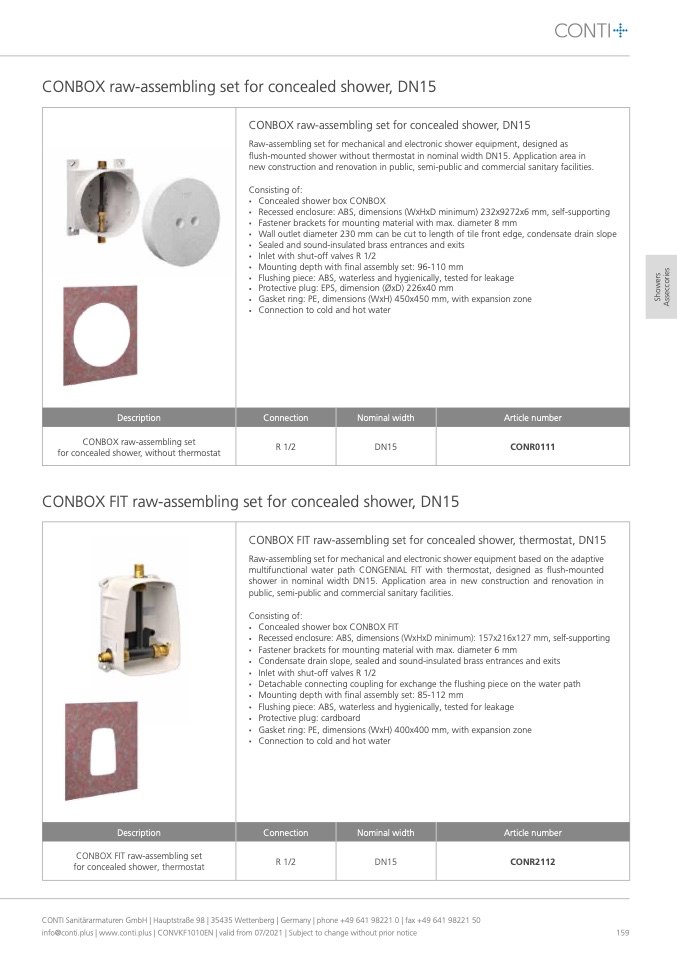

CONBOX raw-assembling set for concealed shower, DN15

CONBOX raw-assembling set for concealed shower, DN15

Raw-assembling set for mechanical and electronic shower equipment, designed as

flush-mounted shower without thermostat in nominal width DN15. Application area in

new construction and renovation in public, semi-public and commercial sanitary facilities.

Consisting of:

•

Concealed shower box CONBOX

•

Recessed enclosure: ABS, dimensions (WxHxD minimum) 232x9272x6 mm, self-supporting

•

Fastener brackets for mounting material with max. diameter 8 mm

•

Wall outlet diameter 230 mm can be cut to length of tile front edge, condensate drain slope

•

Sealed and sound-insulated brass entrances and exits

•

Inlet with shut-off valves R 1/2

•

Mounting depth with final assembly set: 96-110 mm

•

Flushing piece: ABS, waterless and hygienically, tested for leakage

•

Protective plug: EPS, dimension (ØxD) 226x40 mm

•

Gasket ring: PE, dimensions (WxH) 450x450 mm, with expansion zone

•

Connection to cold and hot water

Description

Connection

Nominal width

Article number

CONBOX raw-assembling set

for concealed shower, without thermostat

R 1/2

DN15

CONR0111

CONBOX FIT raw-assembling set for concealed shower, DN15

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

159

CONBOX FIT raw-assembling set for concealed shower, thermostat, DN15

Raw-assembling set for mechanical and electronic shower equipment based on the adaptive

multifunctional water path CONGENIAL FIT with thermostat, designed as

flush-mounted

shower in nominal width DN15. Application area in new construction and renovation in

public, semi-public and commercial sanitary facilities.

Consisting of:

•

Concealed shower box CONBOX FIT

•

Recessed enclosure: ABS, dimensions (WxHxD minimum): 157x216x127 mm, self-supporting

•

Fastener brackets for mounting material with max. diameter 6 mm

•

Condensate drain slope, sealed and sound-insulated brass entrances and exits

•

Inlet with shut-off valves R 1/2

•

Detachable connecting coupling for exchange the flushing piece on the water path

•

Mounting depth with final assembly set: 85-112 mm

•

Flushing piece: ABS, waterless and hygienically, tested for leakage

•

Protective plug: cardboard

•

Gasket ring: PE, dimensions (WxH) 400x400 mm, with expansion zone

•

Connection to cold and hot water

Description

Connection

Nominal width

Article number

CONBOX FIT raw-assembling set

for concealed shower, thermostat

R 1/2

DN15

CONR2112
