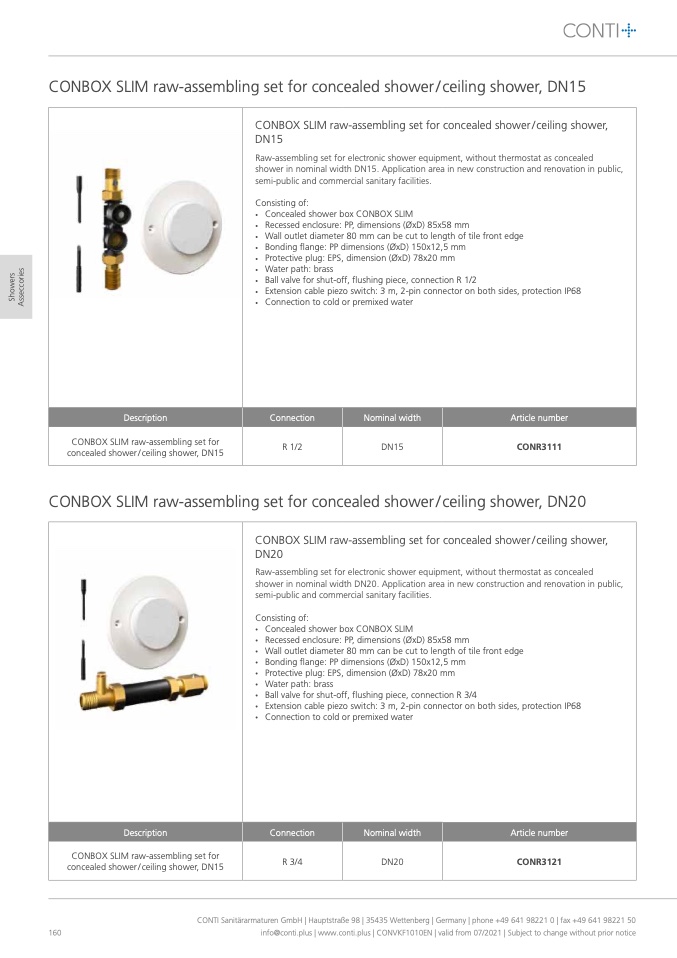

CONBOX SLIM raw-assembling set for concealed shower/ceiling shower,

DN15

Raw-assembling set for electronic shower equipment, without thermostat as concealed

shower in nominal width DN15. Application area in new construction and renovation in public,

semi-public and commercial sanitary facilities.

Consisting of:

•

Concealed shower box CONBOX SLIM

•

Recessed enclosure: PP, dimensions (ØxD) 85x58 mm

•

Wall outlet diameter 80 mm can be cut to length of tile front edge

•

Bonding flange: PP dimensions (ØxD) 150x12,5 mm

•

Protective plug: EPS, dimension (ØxD) 78x20 mm

•

Water path: brass

•

Ball valve for shut-off, flushing piece, connection R 1/2

•

Extension cable piezo switch: 3 m, 2-pin connector on both sides, protection IP68

•

Connection to cold or premixed water

Description

Connection

Nominal width

Article number

CONBOX SLIM raw-assembling set for

concealed shower/ceiling shower, DN15

R 1/2

DN15

CONR3111

CONBOX SLIM raw-assembling set for concealed shower/ceiling shower,

DN20

Raw-assembling set for electronic shower equipment, without thermostat as concealed

shower in nominal width DN20. Application area in new construction and renovation in public,

semi-public and commercial sanitary facilities.

Consisting of:

•

Concealed shower box CONBOX SLIM

•

Recessed enclosure: PP, dimensions (ØxD) 85x58 mm

•

Wall outlet diameter 80 mm can be cut to length of tile front edge

•

Bonding flange: PP dimensions (ØxD) 150x12,5 mm

•

Protective plug: EPS, dimension (ØxD) 78x20 mm

•

Water path: brass

•

Ball valve for shut-off, flushing piece, connection R 3/4

•

Extension cable piezo switch: 3 m, 2-pin connector on both sides, protection IP68

•

Connection to cold or premixed water

Description

Connection

Nominal width

Article number

CONBOX SLIM raw-assembling set for

concealed shower/ceiling shower, DN15

R 3/4

DN20

CONR3121

CONBOX SLIM raw-assembling set for concealed shower/ceiling shower, DN15

CONBOX SLIM raw-assembling set for concealed shower/ceiling shower, DN20
