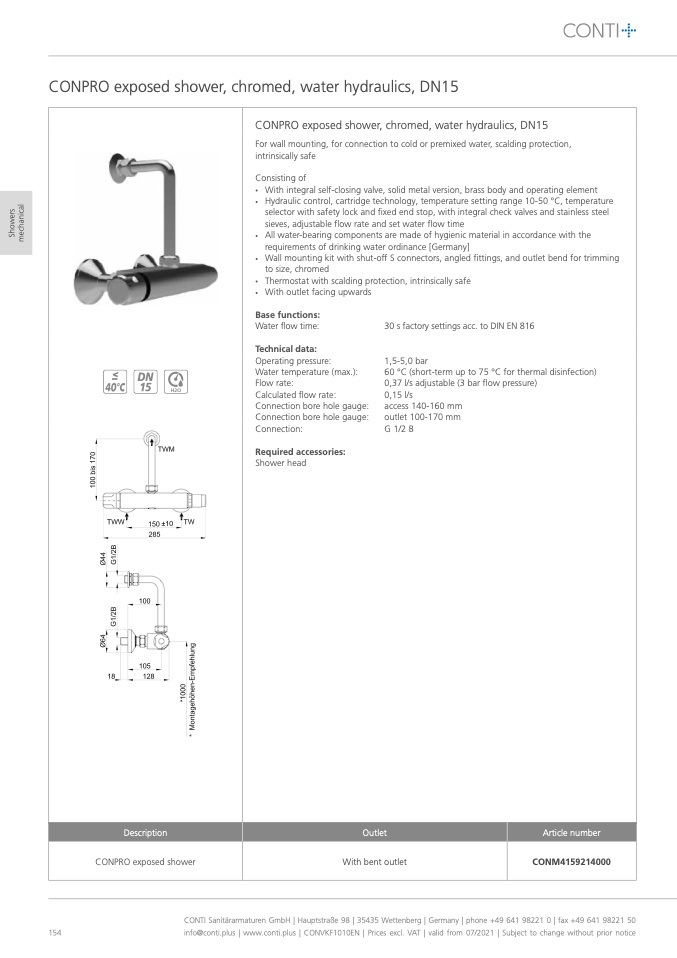

CONPRO exposed shower, chromed, water hydraulics, DN15

For wall mounting, for connection to cold or premixed water, scalding protection,

intrinsically safe

Consisting of

•

With integral self-closing valve, solid metal version, brass body and operating element

•

Hydraulic control, cartridge technology, temperature setting range 10-50 °C, temperature

selector with safety lock and fixed end stop, with integral check valves and stainless steel

sieves, adjustable flow rate and set water flow time

•

All water-bearing components are made of hygienic material in accordance with the

requirements of drinking water ordinance [Germany]

•

Wall mounting kit with shut-off S connectors, angled fittings, and outlet bend for trimming

to size, chromed

•

Thermostat with scalding protection, intrinsically safe

•

With outlet facing upwards

Base functions:

Water flow time:

Technical data:

Operating pressure:

Water temperature (max.):

Flow rate:

Calculated flow rate:

Connection bore hole gauge:

Connection bore hole gauge:

Connection:

Required accessories:

Shower head

30 s factory settings acc. to DIN EN 816

1,5-5,0 bar

60 °C (short-term up to 75 °C for thermal disinfection)

0,37 l/s adjustable (3 bar flow pressure)

0,15 l/s

access 140-160 mm

outlet 100-170 mm

G 1/2 B

Description

Outlet

Article number

CONPRO exposed shower

With bent outlet

CONM4159214000

CONPRO exposed shower, chromed, water hydraulics, DN15

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

154

info@conti.plus | www.conti.plus | CONVKF1010EN | Prices excl. VAT | valid from 07/2021 | Subject to change without prior notice
