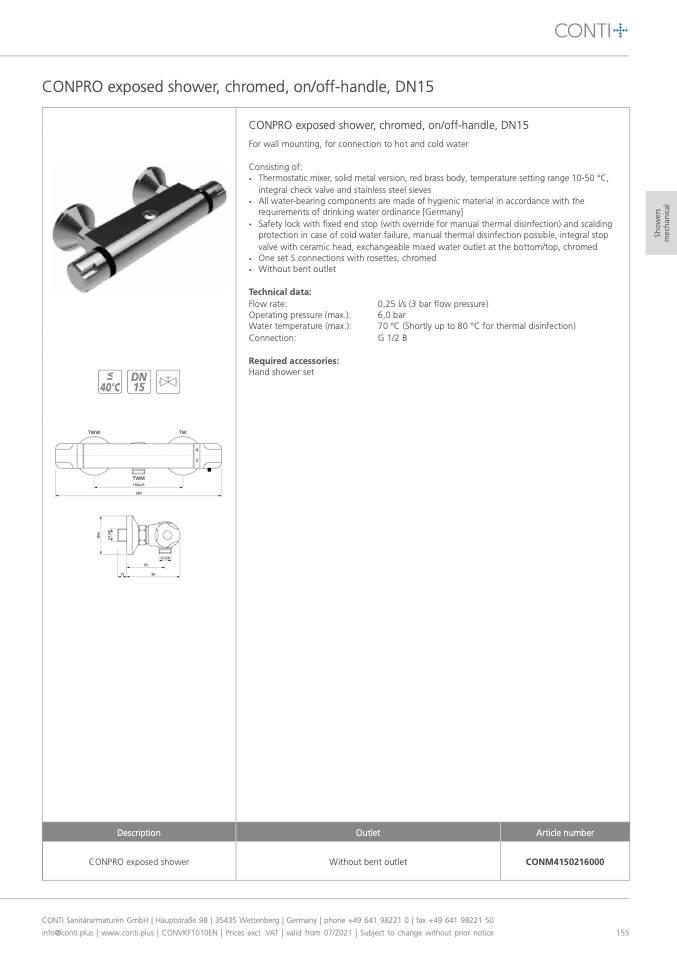

CONPRO exposed shower, chromed, on/off-handle, DN15

CONPRO exposed shower, chromed, on/off-handle, DN15

For wall mounting, for connection to hot and cold water

Consisting of:

•

Thermostatic mixer, solid metal version, red brass body, temperature setting range 10-50 °C,

integral check valve and stainless steel sieves

•

All water-bearing components are made of hygienic material in accordance with the

requirements of drinking water ordinance [Germany]

•

Safety lock with fixed end stop (with override for manual thermal disinfection) and scalding

protection in case of cold water failure, manual thermal disinfection possible, integral stop

valve with ceramic head, exchangeable mixed water outlet at the bottom/top, chromed

•

One set S connections with rosettes, chromed

•

Without bent outlet

Technical data:

Flow rate:

Operating pressure (max.):

Water temperature (max.):

Connection:

Required accessories:

Hand shower set

0,25 l/s (3 bar flow pressure)

6,0 bar

70 oC (Shortly up to 80 °C for thermal disinfection)

G 1/2 B

Description

Outlet

Article number

CONPRO exposed shower

Without bent outlet

CONM4150216000

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | Prices excl. VAT | valid from 07/2021 | Subject to change without prior notice
