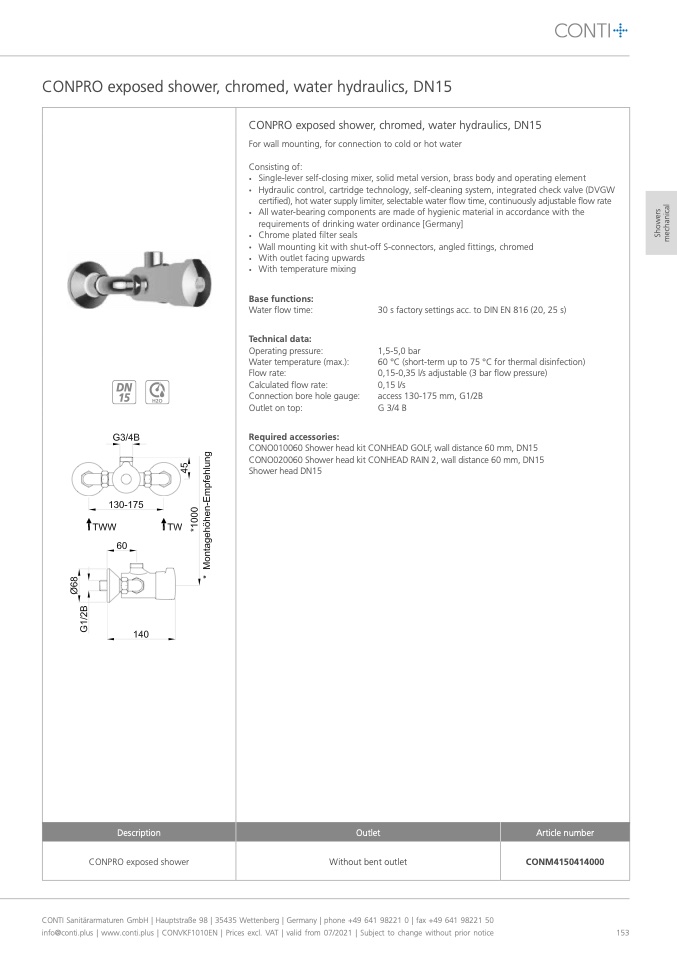

CONPRO exposed shower, chromed, water hydraulics, DN15

CONPRO exposed shower, chromed, water hydraulics, DN15

For wall mounting, for connection to cold or hot water

Consisting of:

•

Single-lever self-closing mixer, solid metal version, brass body and operating element

•

Hydraulic control, cartridge technology, self-cleaning system, integrated check valve (DVGW

certified), hot water supply limiter, selectable water flow time, continuously adjustable flow rate

•

All water-bearing components are made of hygienic material in accordance with the

requirements of drinking water ordinance [Germany]

•

Chrome plated filter seals

•

Wall mounting kit with shut-off S-connectors, angled fittings, chromed

•

With outlet facing upwards

•

With temperature mixing

Base functions:

Water flow time:

Technical data:

Operating pressure:

Water temperature (max.):

Flow rate:

Calculated flow rate:

Connection bore hole gauge:

Outlet on top:

Required accessories:

30 s factory settings acc. to DIN EN 816 (20, 25 s)

1,5-5,0 bar

60 °C (short-term up to 75 °C for thermal disinfection)

0,15-0,35 l/s adjustable (3 bar flow pressure)

0,15 l/s

access 130-175 mm, G1/2B

G 3/4 B

CONO010060 Shower head kit CONHEAD GOLF, wall distance 60 mm, DN15

CONO020060 Shower head kit CONHEAD RAIN 2, wall distance 60 mm, DN15

Shower head DN15

Description

Outlet

Article number

CONPRO exposed shower

Without bent outlet

CONM4150414000
